XV08ORM06
ORFS with male thread ORM

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread
  Connection thread A:	13/16"-16 UN
  Height O-Ring [mm]:	1,78
  Connection name Indunorm:	ORM
  Connection type:	ORFS with male thread
  Construction form:	0°
  Material:	Free cutting steel

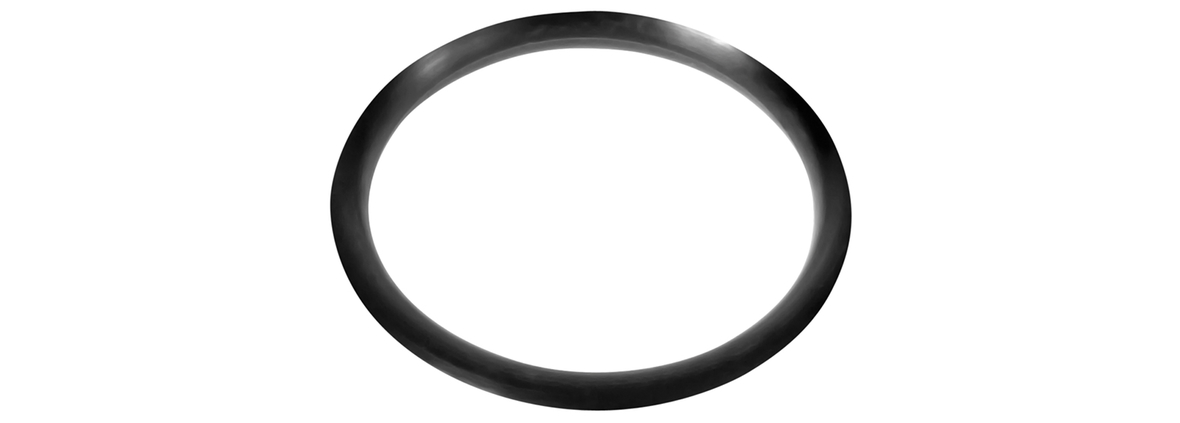

  Material O-Ring:	NBR
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
