Product info
-
Specifications

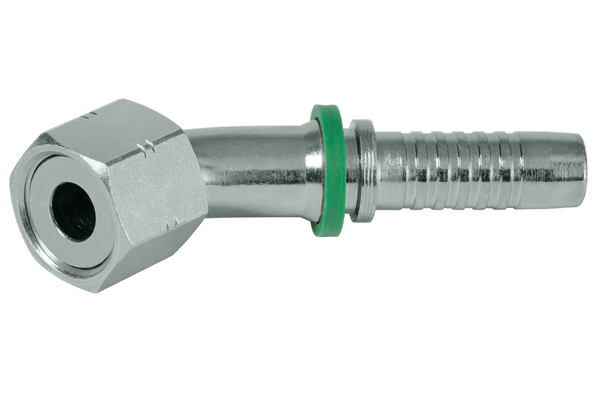

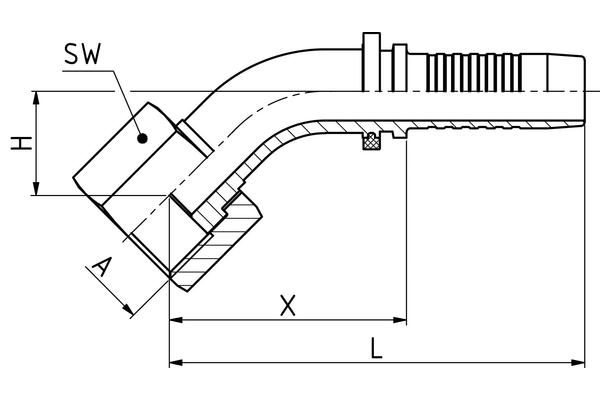

DN: 10 Size: 06 Inch: 3/8 Thread + standard: ORFS sealing form, with union nut, UN / UNF / UNS-Thread Connection thread A: 13/16"-16 UN X [mm]: 44,5 L1 [mm]: 78,0 H [mm]: 19,3 SW1 [mm]: 24 Connection name Indunorm: LORF 45° Connection type: ORFS 45° with union nut Construction form: 45° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
