Product info
-
Technical data

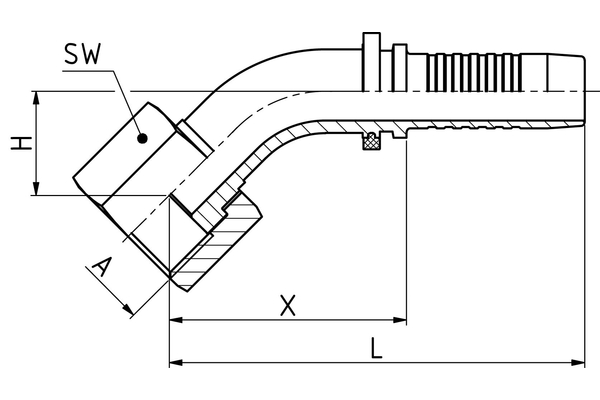

DN: 16 Size: 10 Inch: 5/8 Thread + standard: ORFS sealing form, with union nut, UN / UNF / UNS-Thread Connection thread A: 1"3/16-12 UN X [mm]: 55,2 L1 [mm]: 93,5 H [mm]: 22,5 SW1 [mm]: 36 Connection name Indunorm: LORF 45° Connection type: ORFS 45° with union nut Construction form: 45° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
