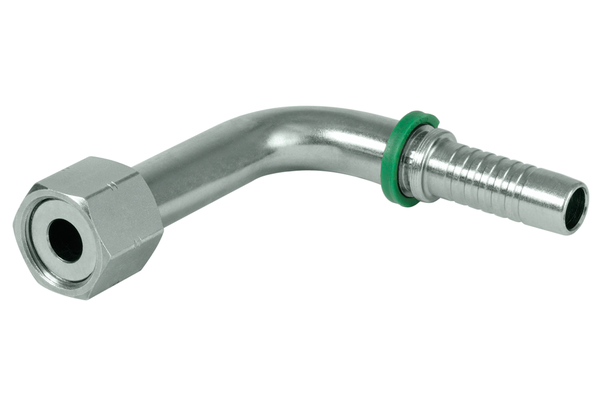

XV10LORF90SL10
ORFS 90° with extended axle stub length and union nut LORF 90°

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread
  Connection thread A:	1"-14 UNS
  X [mm]:	45,0
  L1 [mm]:	83,5
  H [mm]:	94,0
  SW1 [mm]:	30
  Connection name Indunorm:	LORF-90-SL
  Connection type:	ORFS 90° with extended axle stub length and union nut
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
