XV16LORF90SL16

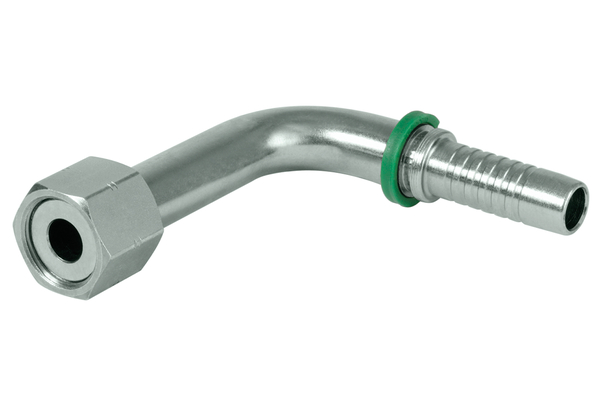

ORFS 90° with extended axle stub length and union nut LORF 90°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread
  Connection thread A:	1.7/16"-12 UN
  X [mm]:	61,4
  L1 [mm]:	116,6
  H [mm]:	114,0
  SW1 [mm]:	41
  Connection name Indunorm:	LORF-90-SL
  Connection type:	ORFS 90° with extended axle stub length and union nut
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
