VC14MRN06

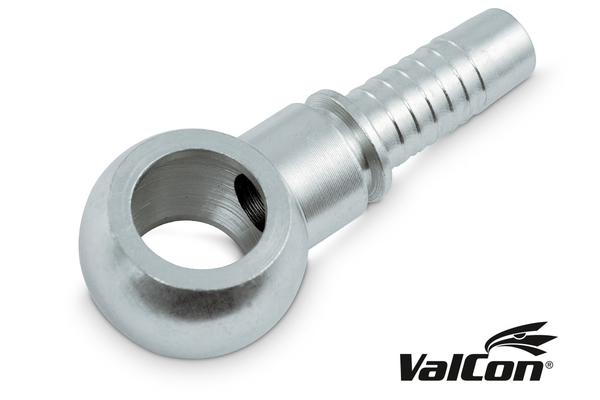

Valcon® swage fitting RGN MRN

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8"
  Thread + standard:	Ring nipple according to DIN 7642 for metric banjo bolts
  d [mm]:	7,0
  Pipe E [mm]:	25
  T:	M14
  Ringnipple bore hole [mm]:	M14
  E [mm]:	24
  C [mm]:	28,0
  L [mm]:	59,5
  Connection name Indunorm:	MRN
  Connection type:	RGN
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
