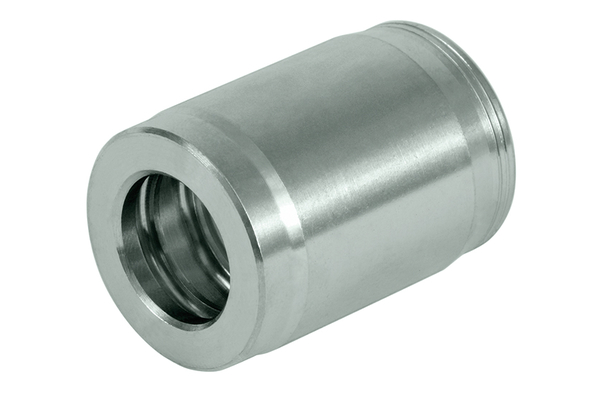

XV05C
XV..C

Product info

• Specifications

  DN:	08
  Size:	05
  Inch:	5/16

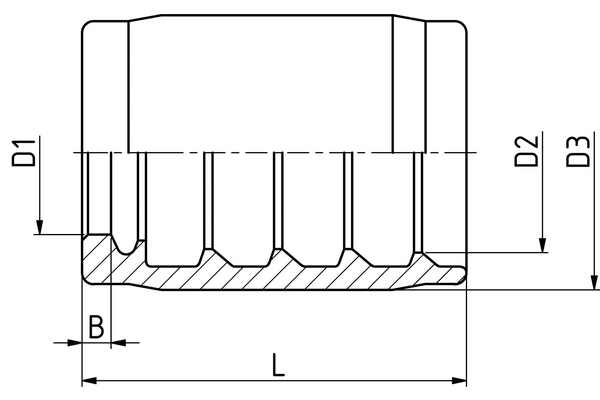

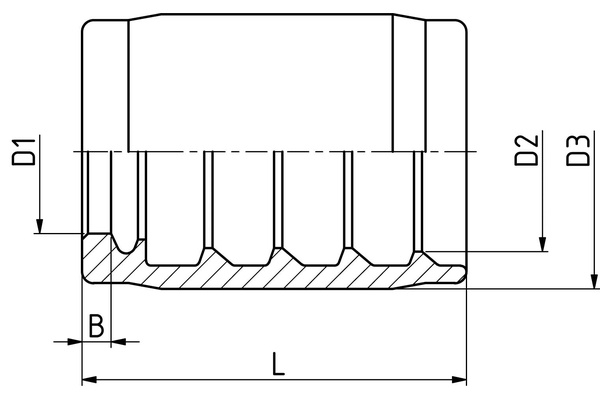

  D2 [mm]:	20,6
  Thread + standard:	Swage ferrule, skive (outside) for: 1SN-hose, 2SC-hose (Swage ferrule XV10D/4L is used for DN 16), 1HWS-hose, SP2Plus ®, TP1 (DN25)
  L [mm]:	31,0
  b [mm]:	2,6
  D [mm]:	12,6
  D1 [mm]:	15,5
  Connection name Indunorm:	XV..C
  Material:	Free cutting steel
  Material:	free cutting steel
  Resistance against red rust [h]:	500
  Resistance against white rust [h]:	96
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
  application:	Swage ferrule
