XV..R1

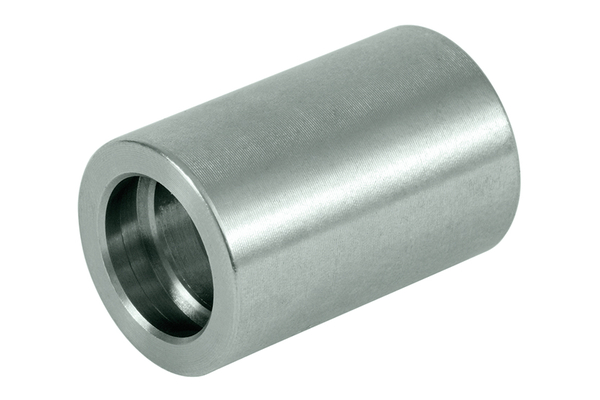

Swage ferrule, non-skive version

To accessories

Detail
Product info

Detail

Art. No.

XV03R1

XV04R1

XV05R1

XV06R1

XV08R1

XV12R1

XV16R1

Size

Inch

3/16

1/4

5/16

3/8

1/2

3/4

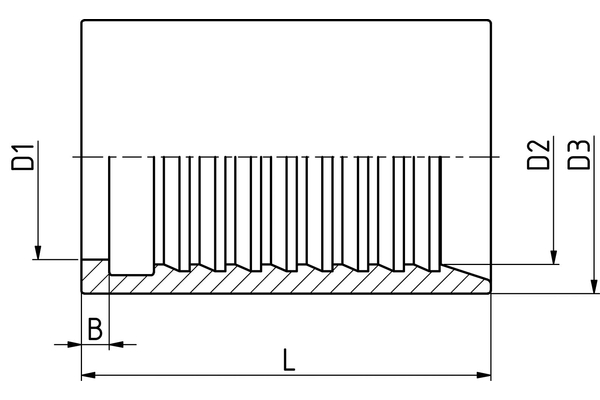

D2 [mm]

14,6

16,5

20,0

21,0

24,6

30,1

37,3

Thread + standard

Swage ferrule, non-skive, for: TP1 (DN 05-DN12 and DN19), TP-R7 (DN 05 - DN 10), TP-R8 (DN 06 - DN 10), TP-R18 (DN 05 - DN 08), TP27 (DN 08), TP3FS

L [mm]

31,8

30,5

32,0

36,5

44,4

53,0

D [mm]

9,1

11,2

12,8

14,4

18,4

24,7

30,4

D1 [mm]

10,6

13,1

16,0

17,0

19,4

26,5

33,0

Quantity

Product info

Specifications

Connection name Indunorm:	XV..R1
Material:	Free cutting steel
Material:	free cutting steel
Surface:	galvanised and Cr III passivated
Type of fittings:	Universal series XV
application:	Ferrule, no-skive
