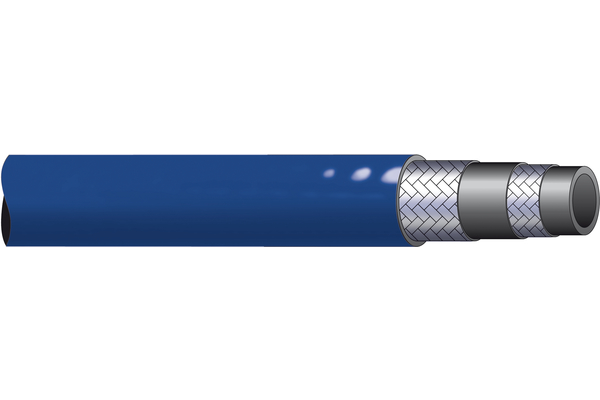

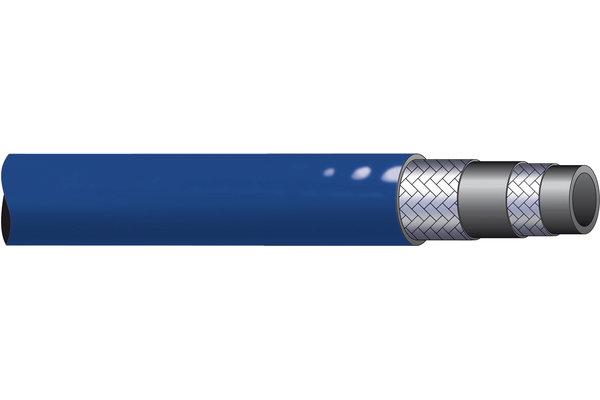

Thermoplastic Paint Spray Hose TP4FS

Detail

Art. No.
TP4FS06
%
SALE
TP4FS10
%
SALE
TP4FS12
%
SALE
DN
06
10
12
Size
04
06
08
Inch
1/4
3/8
1/2
Outer Ø [mm]
12,8
16,8
20,2
Inner Ø [mm]
6,4
9,8
13,0
bending radius [mm]
40
65
85
working pressure [bar]
425
350
300
burst pressure [bar]
1700
1400
1200
Safety factor
4:1
4:1
4:1
Standard ferrule
Weight [kg]
0,240
0,370
0,445
Static test pressure [bar]
850
700
600
Quantity


Product info

  • Specifications
    Color cover: blue
    Color inner tube: black
    Cover: Polyurethan
    Inner tube: Seamless extruded polyamide tube (PA6)
    MSHA-Approval: no
    Media: Airless applications of paint industry, solvents and other chemicals, for air and water-based media
    Norm/Standards: Fulfills or exceeds SAE 100R2 with regard to the operating pressure
    Reinforcement: 2 layers of high tensile, brass plated steel wire
    Temperature range [°C]: - 40 ° C to + 100 ° C; Airless applications of paint industry, solvents and other chemicals, + 70 ° C for air and water-based media
    application: Paint spray systems
    max operating temperature [°C]: +100°C
    number of layers: 2

Benefit

High flexibility. Excellent reliable protection against electrostatic charging.

Accessories

Fittings from the XV universal series (also available in stainless steel).

Practical tip

Small bending radius. Increased service life due to a friction-reducing thermoplastic layer between the reinforcement layers.
