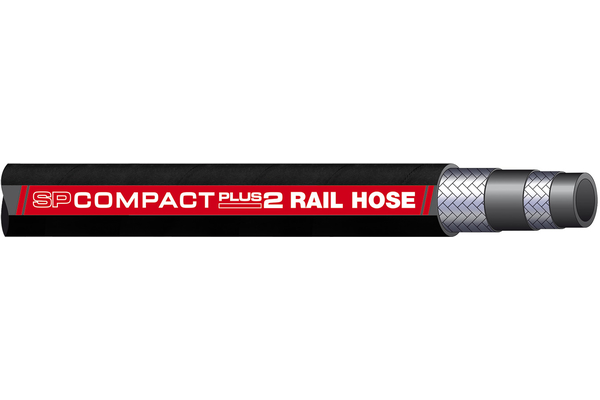

Braided Hose SP-COMPACTplus2 RAIL HOSE

Hydraulic hose of the SUPER-POWER® premium series for high-pressure applications in hydraulics, exceeds EN 857 - 2SC. Complies with EN 45545-2 (HL2-R23).

To accessories

Detail

Art. No.

SP-COMPACTPLUS2-06RH

SP-COMPACTPLUS2-08RH

SP-COMPACTPLUS2-10RH

SP-COMPACTPLUS2-12RH

SP-COMPACTPLUS2-16RH

SP-COMPACTPLUS2-20RH

SP-COMPACTPLUS2-25RH

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

Outer Ø [mm]

13,4

15,0

17,0

20,7

23,6

27,7

35,6

Inner Ø [mm]

6,6

8,3

9,9

13,0

16,4

19,5

26,0

bending radius [mm]

130

160

210

working pressure [bar]

450

420

385

345

290

280

210

burst pressure [bar]

1800

1680

1540

1380

1160

1120

840

Safety factor

4:1

Standard ferrule

XVN04

XVN05

XVN06

XVN08

XVN10

XVN12

XVN16

Standard ferrule stainless steel

XP-P5-04VA

XP-P5-05VA

XP-P5-06VA

XP-P5-08VA

XP-P5-10VA

XP-P5-12VA

Weight [kg]

0,27

0,31

0,39

0,52

0,61

0,79

1,15

Static test pressure [bar]

900

840

770

690

580

560

420

Outer Ø max. [mm]

14,2

16,0

18,3

21,5

24,7

28,6

36,6

Braid diameter [mm]

11,4

13,0

14,9

18,7

21,9

25,7

32,9

Quantity

Product info

Specifications

Approvals:	EN857, EN 45545-2
Color cover:	black
Color inner tube:	black
Cover:	Abrasion and ozone resistant synthetic rubber
Inner tube:	Oil resistant synthetic rubber
MSHA-Approval:	no
Media:	hydraulic oil (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
Norm/Standards:	EXCEEDS EN 857 - 2SC. Meets EN 45545-2 (HL2-R23)
Reinforcement:	steel wire braid, optimized quality with high tensile strength
Temperature range [°C]:	-40 ° C to +100 ° C, water and water-based media up to max. +70 ° C;
application:	Rail transport and track laying machines requiring EN 45545-2
max operating temperature [°C]:	+100°C
number of layers:	2

Benefit

Significantly better than the 2SC hose, exceeds the pressure values according to EN 857 by far. Up to 40% tighter bend radius than the 2SC hose. Up to 10 times higher abrasion resistance than the EN-ISO 9645 demands. High ozone resistance and high resistance to salt water - ideally in conjunction with XV stainless steel fittings. The SP-Compact Plus does not have to be skived!

Accessories

STOPFLEX TEXS with velcro

Practical tip

When laying the hose line make sure to comply with the minimum bending radius. Falling below this value can lead to significantly shortened service life.
