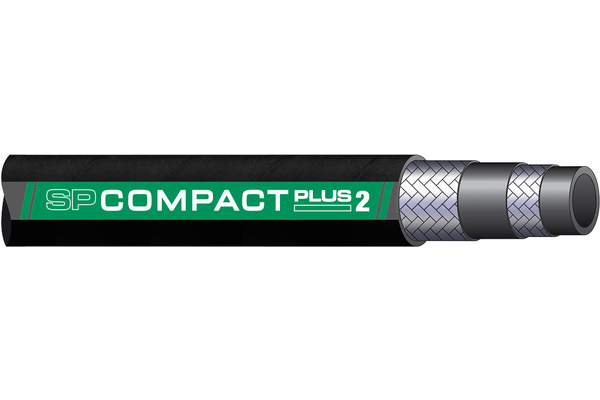

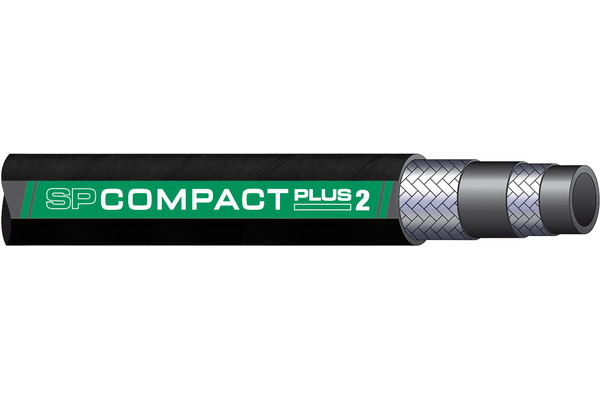

Braided Hose SP-COMPACTplus2 (exceeds EN 857 - 2SC)

Hydraulic hose of the SUPER-POWER® premium series for high-pressure applications in hydraulics, exceeds EN 857 - 2SC

To accessories

Detail

Art. No.

SP-COMPACTPLUS2-06

SP-COMPACTPLUS2-08

SP-COMPACTPLUS2-10

SP-COMPACTPLUS2-12

SP-COMPACTPLUS2-16

SP-COMPACTPLUS2-20

SP-COMPACTPLUS2-25

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

bending radius [mm]

130

160

210

working pressure [bar]

450

420

385

345

290

280

210

burst pressure [bar]

1800

1680

1540

1380

1160

1120

840

Safety factor

4:1

Standard ferrule

XVN04

XVN05

XVN06

XVN08

XVN10

XVN12

XVN16

Standard ferrule stainless steel

XP-P5-04VA

XP-P5-05VA

XP-P5-06VA

XP-P5-08VA

XP-P5-10VA

XP-P5-12VA

Static test pressure [bar]

900

840

770

690

580

560

420

Outer Ø max. [mm]

14,2

16,0

18,3

21,5

24,7

28,6

36,6

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	Special-Synthetic rubber, wear resistant
Inner tube:	Oil resistant synthetic rubber
MSHA-Approval:	no
Media:	water and water-based media up to max. +70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EXCEEDS EN 857 - 2SC
Reinforcement:	steel wire braids, optimized quality with high tensile strength
Temperature range [°C]:	-40 ° C to +100 ° C, water and water-based media up to max. +70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
application:	high pressure applications
max operating temperature [°C]:	+100°C
number of layers:	2

Benefit

Significantly better than the 2SC hose, exceeds the pressure values according to EN 857 by far. Up to 40% tighter bend radius than the 2SC hose. Up to 10 times higher abrasion resistance than the EN-ISO 9645 demands. High ozone resistance and high resistance to salt water - ideally in conjunction with XV stainless steel fittings. The SP-Compact Plus does not have to be skived!
