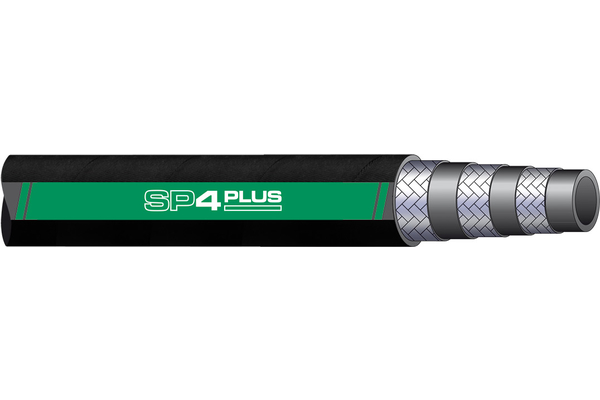

Braided Hose SP4plus (exceeds EN 856 - 4SP)

Hydraulic hose of SUPER-POWER® line for high pressure applications in hydraulics exceeds EN 856-4SP. Due to its very good abrasion resistance, excellent flexibility and higher operating pressures than the 4SP, the SP4plus is ideally suited for the high demands in the fields of forestry, civil engineering and industry.

To accessories

Detail

Art. No.

SP4PLUS10

SP4PLUS12

SP4PLUS16

SP4PLUS20

SP4PLUS25

Size

Inch

3/8

1/2

5/8

3/4

Outer Ø [mm]

20,9

24,1

27,8

31,1

38,8

Inner Ø [mm]

9,9

13,0

16,4

19,5

26,0

bending radius [mm]

120

160

210

260

310

working pressure [bar]

500

470

410

375

310

burst pressure [bar]

2000

1880

1640

1500

1240

Safety factor

4:1

Standard ferrule

XV06D/4L

XV08D/4L

XV10D/4L

XV12D/4L

XV16D/4L

Weight [kg]

0,66

0,89

1,10

1,33

1,87

Static test pressure [bar]

1000

940

820

750

620

Braid diameter [mm]

16,8

20,6

24,0

28,1

36,2

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Oil resistant synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EXCEEDS EN 856 - 4SP
Reinforcement:	3 layer of high tensile, brass plated steel wire
Temperature range [°C]:	- 40 ° C to + 100 ° C short-term + 120 ° C; Water and water-based media up to max. + 70 ° C
application:	high pressure applications
max operating temperature [°C]:	+100°C
number of layers:	3

Benefit

Storage cost savings by using the universal program XV. High abrasion resistance. High flexibility (bending radius up to 30% under EN 856, 4SP hose) with good kink resistance. Significantly higher operating pressures than the 4SP hose (according to EN 856).

Accessories

STOPFLEX TEXS

Practical tip

Very well suited for the high demands in forestry, civil engineering and industry. Ideal for multi spiral applications (4SP), where small bending radiuses are required! At high pulse loads e.g. hammer- or test-rig applications, we recommend the use of multi spiral hoses and fittings with pull-out protection. "
