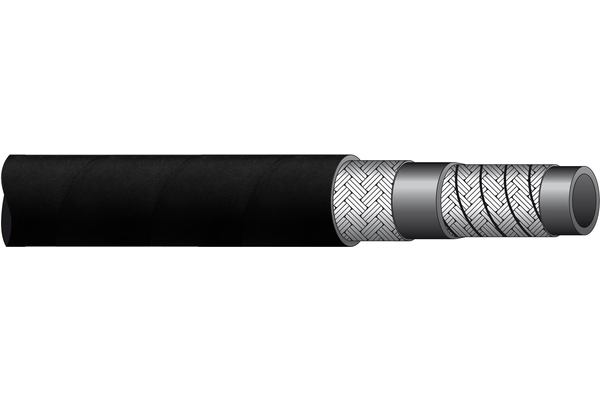

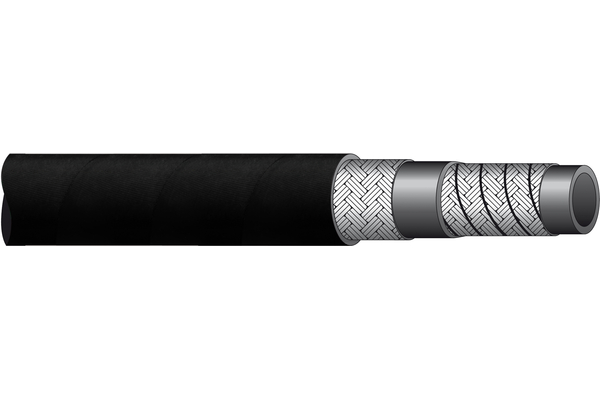

Highly flexible textile suction hose SP-R4

Highly flexible pressure hose for suction and discharge applications to SAE 100 R4

To accessories

Detail

Art. No.

SP-R4-20

SP-R4-25

SP-R4-32

SP-R4-40

SP-R4-50

SP-R4-63

Size

Inch

3/4

1.1/4

1.1/2

2.1/2

Outer Ø [mm]

30,0

36,0

43,0

49,0

62,0

76,0

Inner Ø [mm]

19,0

25,0

32,0

38,0

51,0

63,0

bending radius [mm]

102

125

working pressure [bar]

burst pressure [bar]

Safety factor

4:1

Standard ferrule

XVTE12

XVTE16

XVTE20

XVTE24

XVTE32

Weight [kg]

0,60

0,75

0,92

1,06

1,38

2,18

Static test pressure [bar]

42,0

34,0

28,0

20,0

14,0

8,0

Vacuum [bar]

-0,9bar

-0,9 bar

Quantity

Product info

Specifications

Approvals:	SAE J517 Type: SAE 100/R4: 2008
Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Inner tube made of synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic fluids HL + HLP according to DIN 51524
Norm/Standards:	EXCEEDS SAE 100 R4
Reinforcement:	Textile wrapped, zinc plated double sT-l wire helix
Temperature range [°C]:	-40°C to + 100°C
application:	suction and discharge hose according to SAE 100 R4
max operating temperature [°C]:	+100°C
number of layers:	2

Benefit

Significantly better than the R4 hose, exceeds the bending radius values according to SAE 100-R4 by far. Up to 40% tighter bend radius than the R4 hose.

Accessories

STOPFLEX TEXS with velcro

Practical tip

Cutting the hose by means of a hand saw is most suitable. The spring steel spiral can eg. to be separated by a power cutters. Prevent injuries by disconnecting protruding ends of the spiral flush. The R4-hose may be cut in any case with a toothed circular blade! With a serrated circular blade there is a risk that the spring steel spiral gets stuck in the teeth of the circular knife, which not only damaged the knife but can result in significant injury to personnel. When using a smooth circular k
