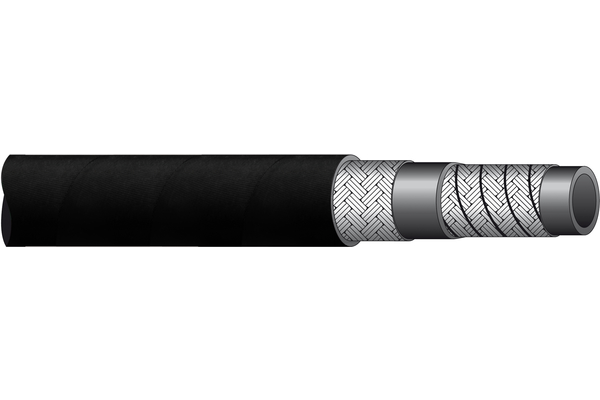

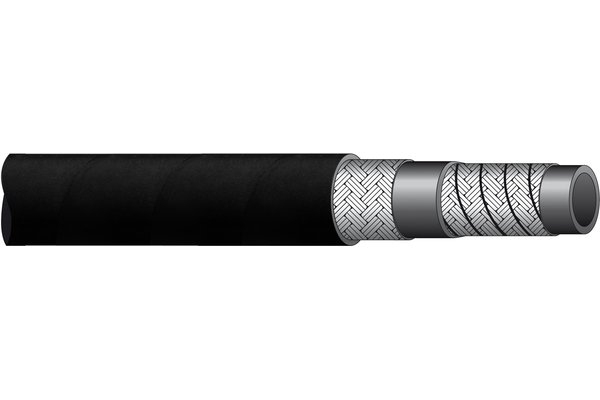

Textile Suction Hose R4 (SAE 100 R4)

Pressure hose for suction and discharge applications to SAE 100 R4

To accessories

Detail

Art. No.

R4-20

R4-25

R4-32

R4-40

R4-50

R4-63

Size

Inch

3/4

1.1/4

1.1/2

2.1/2

Outer Ø [mm]

29,0

35,4

41,8

49,0

62,0

76,5

Inner Ø [mm]

19,0

25,4

31,8

38,1

51,0

63,5

bending radius [mm]

125

150

200

250

working pressure [bar]

burst pressure [bar]

Safety factor

4:1

Standard ferrule

XVTE12

XVTE16

XVTE20

XVTE24

XVTE32

Weight [kg]

0,60

0,70

0,90

1,10

1,35

1,90

Static test pressure [bar]

Vacuum [bar]

-0,9bar

Quantity

Product info

Specifications

Approvals:	SAE J517 Type: SAE 100/R4: 2008
Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Inner tube made of synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic fluids HL + HLP according to DIN 51524
Norm/Standards:	SAE 100 R4
Reinforcement:	Textile wrapped, zinc plated double sT-l wire helix
Temperature range [°C]:	- 40 ° C to + 100 ° C
application:	suction and discharge hose according to SAE 100 R4
max operating temperature [°C]:	+100°C
number of layers:	2

Benefit

Matched fittings and ferrules available to ensure safe connection.

Practical tip

Cutting the hose by means of a hand saw is most suitable. The spring sT-l spiral can eg. to be separated by a power cutters. Prevent injuries by disconnecting protruding ends of the spiral flush. The R4-hose may be cut in any case with a toothed circular blade! With a serrated circular blade there is a risk that the spring sT-l spiral gets stuck in the T-th of the circular knife, which not only damaged the knife but can result in significant injury to personnel. When using a smooth circular k
