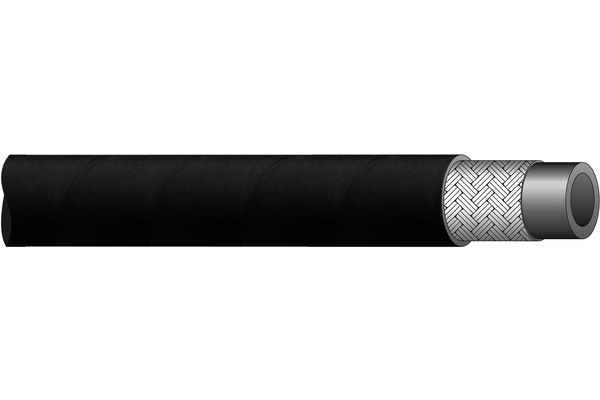

Textile Hose 2TE (EN 854 - 2TE)

Black, abrasion-resistant hydraulic hose with textile insert according to EN 854-2TE.

To accessories

Detail

Art. No.

2TE06

2TE08

2TE10

2TE12

2TE16

2TE20

2TE25

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

Outer Ø [mm]

13,4

14,9

16,5

19,7

23,9

27,0

34,4

Inner Ø [mm]

6,4

7,9

9,5

12,7

16,0

19,0

25,4

bending radius [mm]

110

150

working pressure [bar]

burst pressure [bar]

300

270

252

230

200

180

160

Safety factor

4:1

Standard ferrule

XVTE04

XVTE05

XVTE06

XVTE08

XVTE10

XVTE12

XVTE16

Weight [kg]

0,145

0,165

0,185

0,240

0,320

0,370

0,540

Static test pressure [bar]

150

136

126

116

100

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Synthetic rubber
MSHA-Approval:	no
Media:	water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 854 - 2 TE
Reinforcement:	Textile braid, single layer
Temperature range [°C]:	- 40 ° C to + 100 ° C
max operating temperature [°C]:	+100°C
number of layers:	2
