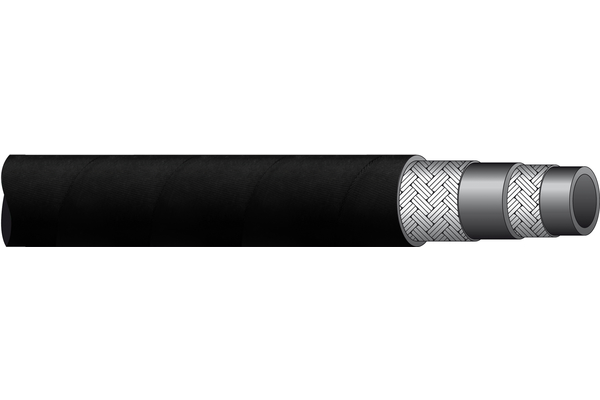

3TE32
Textile hose 3TE

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Outer Ø [mm]:	42,3
  Inner Ø [mm]:	31,8
  bending radius [mm]:	190
  working pressure [bar]:	45
  burst pressure [bar]:	220
  Safety factor:	4:1

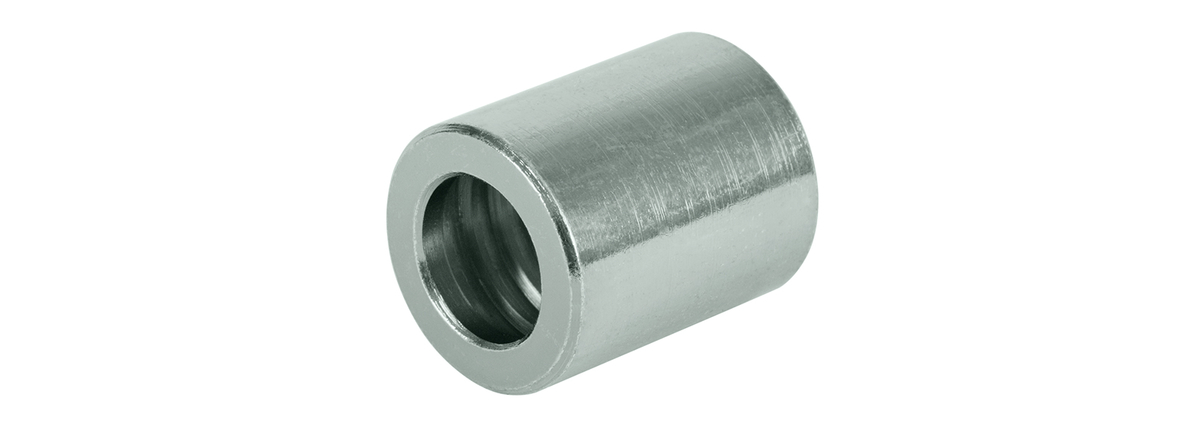

  Standard ferrule:	XVTE20
  Weight [kg]:	0,755
  Static test pressure [bar]:	90
  Outer Ø max. [mm]:	43,8
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 854 - 3 TE
  Reinforcement:	Textile braid, double layer
  Temperature range [°C]:	- 40 ° C to + 100 ° C
  max operating temperature [°C]:	+100°C
  number of layers:	2
