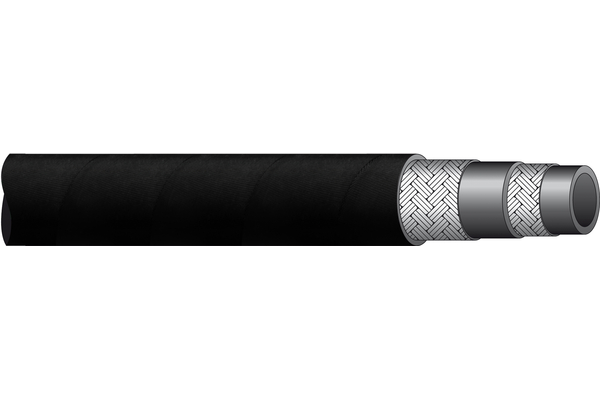

Textile Hose 3TE (EN 854 - 3TE)

Detail

Art. No.
3TE06
%
SALE
3TE08
%
SALE
3TE10
%
SALE
3TE12
%
SALE
3TE16
%
SALE
3TE20
%
SALE
3TE25
%
SALE
3TE32
%
SALE
3TE40
%
SALE
3TE50
%
SALE
DN
06
08
10
12
16
19
25
31
38
51
Size
04
05
06
08
10
12
16
20
24
32
Inch
1/4
5/16
3/8
1/2
5/8
3/4
1
1.1/4
1.1/2
2
Outer Ø [mm]
14,4
16,9
18,5
21,7
25,9
29,0
35,9
42,3
49,6
62,3
Inner Ø [mm]
6,4
8,0
9,5
12,7
16,0
19,0
25,4
31,8
38,1
50,8
bending radius [mm]
45
55
70
85
105
130
150
190
240
300
working pressure [bar]
145
130
110
93
80
70
55
45
40
33
burst pressure [bar]
630
580
500
440
380
330
280
220
190
160
Safety factor
4:1
4:1
4:1
4:1
4:1
4:1
4:1
4:1
4:1
4:1
Weight [kg]
0,165
0,215
0,245
0,305
0,410
0,465
0,630
0,755
0,965
1,280
Static test pressure [bar]
290
260
220
186
160
140
110
90
80
66
Outer Ø max. [mm]
15,2
30,0
43,8
51,6
64,3
Quantity


Product info

  • Technical data
    Color cover: black
    Color inner tube: black
    Cover: Synthetic rubber, wear resistant
    Inner tube: Synthetic rubber
    MSHA-Approval: no
    Media: water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
    Norm/Standards: EN 854 - 3 TE
    Reinforcement: Textile braid, double layer
    Temperature range [°C]: - 40 ° C to + 100 ° C
    max operating temperature [°C]: +100°C
    number of layers: 2

Benefit

The Indunorm fitting instruction facilitates a professional assembling of TE hose-lines!

Accessories

Swage nipple of the universal program XV
