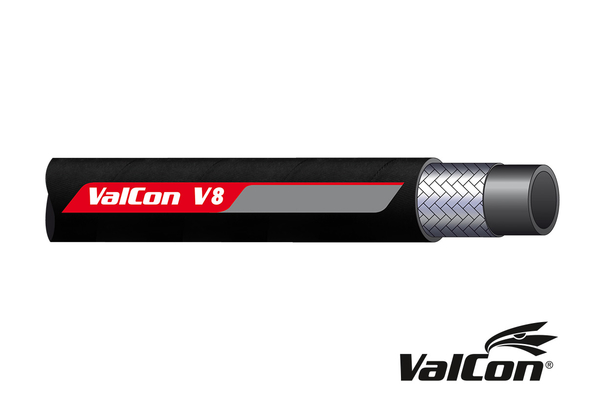

Valcon® Braided Hose V8-1SN

Hydraulic hose for medium pressure applications, according to EN 853 - 1SN

To accessories

Detail

Art. No.

V8-1SN06

V8-1SN08

V8-1SN10

V8-1SN12

V8-1SN16

V8-1SN20

V8-1SN25

Size

Inch

5/16

3/8

1/2

5/8

3/4

Inner Ø [mm]

6,6

bending radius [mm]

100

115

130

180

200

240

300

working pressure [bar]

225

215

180

160

130

105

burst pressure [bar]

900

850

720

640

520

420

352

Safety factor

4:1

Standard ferrule

VC2-04

VC2-05

VC2-06

VC2-08

VC2-10

VC2-12

VC2-16

Weight [kg]

0,190

Static test pressure [bar]

450

430

360

320

260

210

176

Vacuum [bar]

-0,8

Inner diameter min [mm]

7,7

9,3

12,3

15,5

18,6

25,0

Outer Ø max. [mm]

13,4

15,7

18,1

21,4

24,5

28,5

36,6

Braid diameter [mm]

10,9

Inner diameter max [mm]

8,5

10,1

13,5

16,7

19,8

26,4

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 853 - 1SN
Reinforcement:	High tensile steel wire
Temperature range [°C]:	-40 °C to + 100 °C, water and water-based media up to + 70 °C
application:	medium pressure applications
max operating temperature [°C]:	+100°C
number of layers:	1
