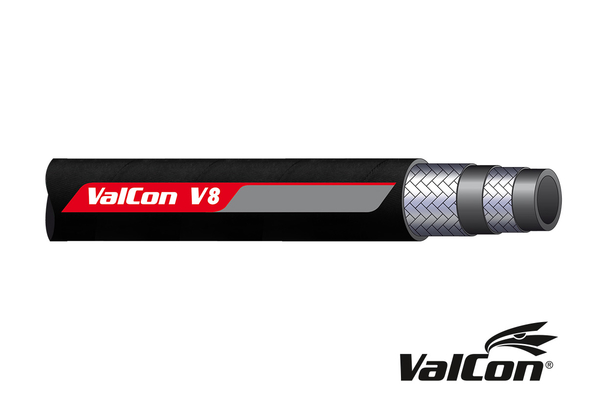

Valcon® Braided Hose V8-2SC

Detail

Art. No.
V8-2SC06
%
SALE
V8-2SC08
%
SALE
V8-2SC10
%
SALE
V8-2SC12
%
SALE
V8-2SC16
%
SALE
V8-2SC20
%
SALE
V8-2SC25
%
SALE
DN
06
08
10
12
16
19
25
Size
04
05
6
8
10
12
16
Inch
1/4
5/16
3/8
1/2
5/8
3/4
1
Outer Ø [mm]
max. 14,2
max. 16,0
max. 18,3
max. 21,5
max. 24,7
max. 28,6
max. 36,6
bending radius [mm]
75
85
90
130
170
200
250
working pressure [bar]
400
350
330
275
250
215
165
burst pressure [bar]
1600
1400
1320
1100
1000
860
660
Safety factor
4:1
4:1
4:1
4:1
4:1
4:1
4:1
Static test pressure [bar]
800
700
660
550
500
430
330
Outer Ø max. [mm]
14,2
16,0
18,3
21,5
24,7
28,6
36,6
Quantity


Product info

  • Specifications
    Color cover: black
    Color inner tube: black
    Cover: Synthetic rubber, wear resistant
    Inner tube: Synthetic rubber
    MSHA-Approval: no
    Media: Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
    Norm/Standards: EN 857 - 2SC
    Reinforcement: High tensile steel wire braid
    Temperature range [°C]: - 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C
    application: high pressure applications
    max operating temperature [°C]: +100°C
    number of layers: 2

Accessories

STOPFLEX TEXS APS

Practical tip

When laying the hose line make sure to comply with the minimum bending radius. An underflow can reduce operating life significantly.
