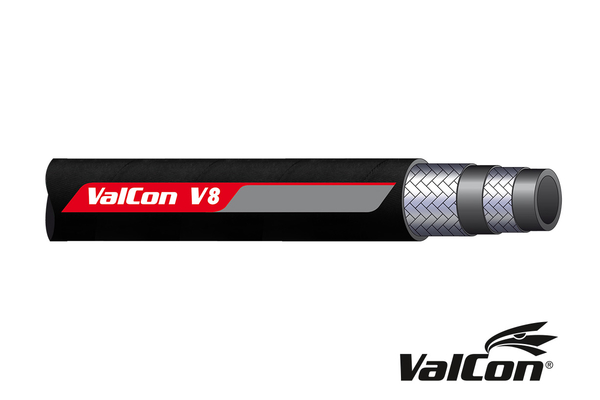

Valcon® Braided Hose V8-2SN

Hydraulic hose for high pressure applications, according to EN 853 - 2SN

To accessories

Detail

Art. No.

V8-2SN06

V8-2SN08

V8-2SN10

V8-2SN12

V8-2SN16

V8-2SN20

V8-2SN25

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

bending radius [mm]

100

115

130

180

200

240

300

working pressure [bar]

400

350

330

275

250

215

165

burst pressure [bar]

1600

1400

1320

1100

1000

850

650

Safety factor

4:1

Standard ferrule

VC1-04

VC1-05

VC1-06

VC1-08

VC1-10

VC1-12

VC1-16

Static test pressure [bar]

800

700

660

550

500

430

330

Outer Ø max. [mm]

15,7

17,3

19,7

23,0

26,2

30,1

38,9

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 853 - 2SN
Reinforcement:	High tensile steel wire braid
Temperature range [°C]:	-40 °C to + 100 °C, water and water-based media up to + 70 °C
application:	high pressure applications
max operating temperature [°C]:	+100°C
number of layers:	2
