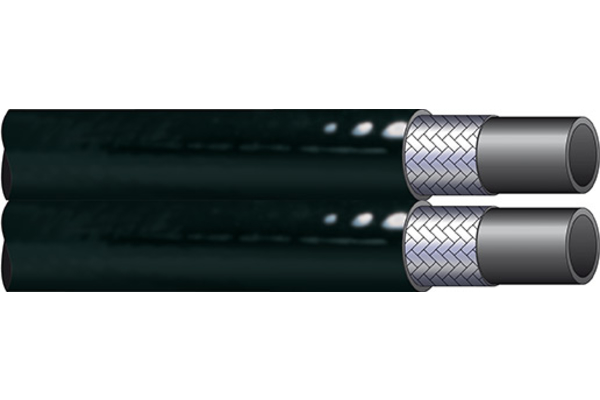

TP-R7-Z (according to SAE 100 R7)

Thermoplastic hose for high pressure applications, according to SAE 100 R7. Accurate control of your hydraulic system through maximum working pressure of the TP hoses. Our TP hoses are characterized by high resistance to weathering, aging and abrasion.

To accessories

Detail

Art. No.

TP-R7-Z05

TP-R7-Z06

TP-R7-Z08

TP-R7-Z10

TP-R7-Z12

Size

Inch

3/16

1/4

5/16

3/8

1/2

Outer Ø [mm]

9,6

12,2

14,3

16,0

20,3

Inner Ø [mm]

5,0

6,5

8,1

9,7

13,0

bending radius [mm]

working pressure [bar]

210

190

160

140

burst pressure [bar]

840

760

640

560

Safety factor

4:1

Standard ferrule

XV03R1

XV04R1

XV05R1

XV06R1

XV08R2

Weight [kg]

0,120

0,200

0,260

0,290

0,440

Static test pressure [bar]

420

380

320

280

Vacuum [bar]

0,93 bar; 700 mm Hg|-13,5 psi; 27,5 inch Hg

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	Polyurethan, pin pricked
Inner tube:	Seamless extruded polyester tube (PEL)
MSHA-Approval:	no
Media:	Mineral oils and fluids based on phosphate ester-based hydraulic fluids, gas applications (does not apply to flammable gases, oxygen and LPG)
Norm/Standards:	SAE 100 R7
Reinforcement:	synthetic fiber
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
application:	Construction and agricultural equipment - Agricultural brake systems - Forklift Trucks - Articulating and telescopic booms - Aerial platforms - Scissor lifts - Cranes - General hydraulics - Industrial gases
max operating temperature [°C]:	+100°C
number of layers:	DN04+05 = 1 layer, DN06-25 = 2 layers

Benefit

"Pin-pricked cover for gas applications. High flexibility and low fatigue of the material within the entire temperature range. Low elongation (<+ - 3%)... At operating pressure"
