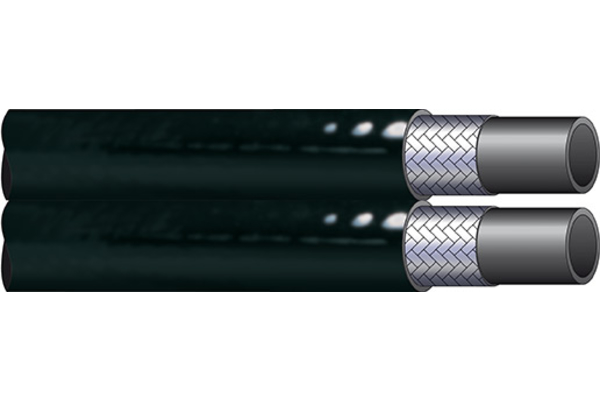

TP-R8-Z (according to SAE 100 R8)

hose for high pressure applications, according to SAE 100 R8. Accurate control of your hydraulic system through maximum working pressure of the TP hoses. Our TP hoses are characterized by high resistance to weathering, aging and abrasion.

To accessories

Detail

Art. No.

TP-R8-Z06

TP-R8-Z08

TP-R8-Z10

TP-R8-Z12

Size

Inch

1/4

5/16

3/8

1/2

Outer Ø [mm]

11,5

13,4

15,5

19,9

Inner Ø [mm]

6,5

8,1

9,7

13,0

bending radius [mm]

working pressure [bar]

350

300

280

245

burst pressure [bar]

1400

1200

1120

980

Safety factor

4:1

Standard ferrule

XV04R1

XV05R1

XV06R1

XV08R2

Weight [kg]

0,200

0,240

0,320

0,480

Static test pressure [bar]

700

600

560

490

Vacuum [bar]

0,93 bar; 700 mm Hg|-13,5 psi; 27,5 inch Hg

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	Polyurethan, pin pricked
Inner tube:	Seamless extruded polyester tube (PEL)
MSHA-Approval:	no
Media:	Mineral oils and fluids based on phosphate ester-based hydraulic fluids, gas applications (does not apply to flammable gases, oxygen and LPG).
Norm/Standards:	SAE 100R8 // EN855-R8 // ISO3949-R8
Reinforcement:	One or two braids of aramid fiber / kevlar fiber
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C;
max operating temperature [°C]:	+100°C
number of layers:	DN05 = 1 layer, from DN06 = 2 layers
