1HWS10

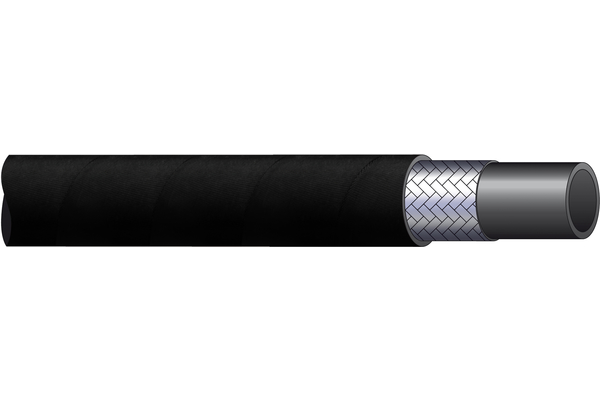

Braided hose 1HWS (pressure washer hose)

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Outer Ø [mm]:	16,8
  Inner Ø [mm]:	9,9
  bending radius [mm]:	125
  working pressure [bar]:	220
  burst pressure [bar]:	720
  Safety factor:	3,3:1
  Standard ferrule:	XV06C
  Weight [kg]:	0,28
  Static test pressure [bar]:	360
  Braid diameter [mm]:	14,8
  Color cover:	black or blue
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant, black or blue
  Inner tube:	Synthetic rubber, black
  MSHA-Approval:	no
  Media:	Water, commercially available detergent
  Norm/Standards:	EN 853 - 1SN
  Reinforcement:	1 layer of high tensile steel wire
  Temperature range [°C]:	-40°C to +155°C
  application:	pressure washer applications, for hot and cold water, e.g. Kärcher
  max operating temperature [°C]:	+155°C
  number of layers:	1
