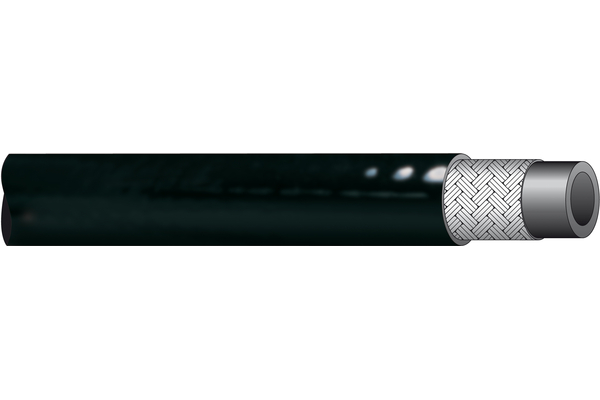

TP-AF

Thermoplastic hose for high pressure hydraulics in lubrication line, forklifts and mobile hydraulics (e.g. tilt function for truck cabs)

To accessories

Detail

Art. No.

TP-AF04

TP-AF06

Size

Inch

1/8

1/4

Outer Ø [mm]

8,1

11,2

Inner Ø [mm]

4,0

6,3

bending radius [mm]

working pressure [bar]

287

233

burst pressure [bar]

860

700

Safety factor

3:1

Standard ferrule

R02AF-T

R04AF-T

Weight [kg]

4,0

7,5

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	DN4=Polyamid, DN6-DN12=Polyurethan
Inner tube:	Polyamid tube (PA11)
MSHA-Approval:	no
Norm/Standards:	DIN 20024
Reinforcement:	One braid of synthetic fiber
Temperature range [°C]:	- 60 °C up to + 100 °C
application:	lubrication line, forklifts and mobile hydraulics (e.g. tilt function for truck cabs)
max operating temperature [°C]:	short term +120 °C
number of layers:	1

Benefit

Long life due to a Pulse strength of more than 1 million pulses. High abrasion resistance by thick smooth cover. Good chemical resistance by PA11 inner layer. Easy on-site installation by screw fittings possible.
