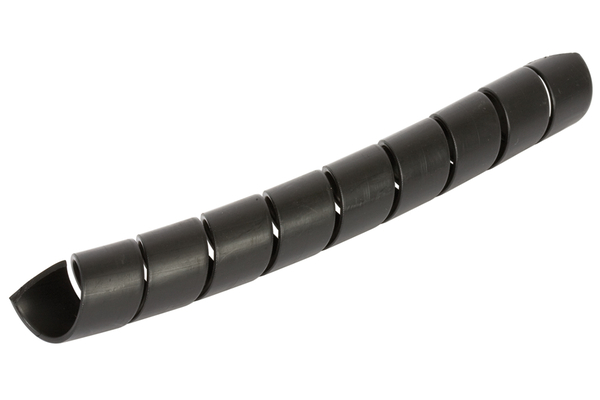

Plastic hose protector spiral SKW black

Plastic spiral coil to avoid hoses from damaging by shearing load. Also suitable for retrofitting or for bundling hoses.

To accessories

Detail

Art. No.

SKW12-50M

SKW16

SKW16-50M

SKW20

SKW25

SKW32

SKW32-50M

SKW40

SKW50

SKW63

SKW75

SKW90

SKW110

1-wire

2-wire

suitable for hose-outer-Ø [mm]

10 - 17

12 - 22

16 - 27

22 - 35

27 - 43

33 - 55

42 - 64

52 - 75

65 - 96

80 - 110

97 - 125

Roll length [m]

Inner Ø [mm]

11,5

Color

black

Quantity

Product info

Specifications

Material:	High Density Polyethylene (HDPE)
Multispiral [DN]:	-
Temperature range [°C]:	-50°C up to +120°C
application:	high pressure applications

Benefit

The polyethylene material combines the advantages of high toughness, break load resistance and high load carrying capacity. The flexibility and the bending radius of the hose qualities used are maintained. The storage and removal is optimized by special dispensing boxes. Rounded edges of the SKW protect against higher abrasion in the bending points of the hose line.

Practical tip

The use of the Z4 circular knife in your cutter ensures the highest cutting precision. For hammer use, we recommend using our PV Hammer fittings from the multispiral series HV. Currently available for DN19 to DN31."
