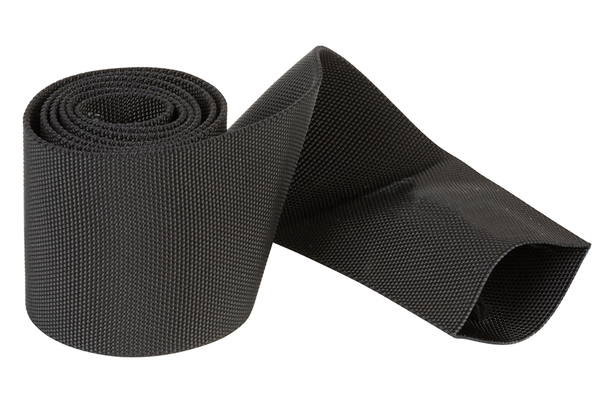

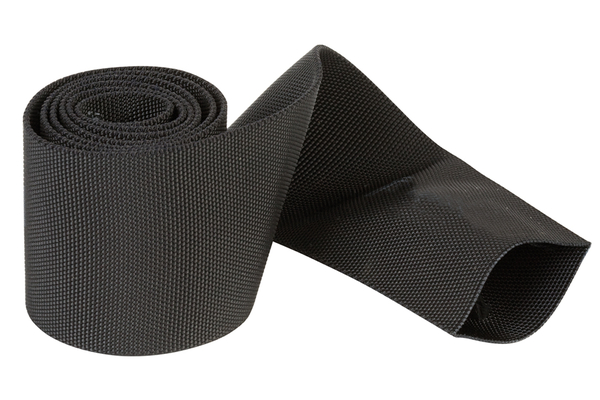

Protective hose TEXS

Protective hose made of abrasion- and heat-resistant fiber braid for protection against uncontrolled oil leakage

To accessories

Detail

Art. No.

TEXS-17

TEXS-20

TEXS-23

TEXS-27

TEXS-31

TEXS-36

TEXS-40

TEXS-44

TEXS-55

TEXS-60

TEXS-66

TEXS-73

TEXS-93

TEXS-112

Packaging unit

Inner Ø [mm]

112

Quantity

Product info

Technical data

Material:	High tensile and wear resistant fiber braid
Properties:	Protective hose TEXS complies with the requirements of ISO 8031 regarding electrical conductivity as well as ISO 8030 concerning fire performance. The measured conductivity values range from 3 to 5 × 10⁶ Ω/m, which is well below the limit value of 10⁷ Ω/m specified in ISO 8031. The actual conductivity may vary depending on the type of hose on which the protective sleeve is installed.
Temperature range [°C]:	- 40 ° C to + 100 ° C, short term + 120 ° C
application:	suction and discharge hose according to SAE 100 R4

Benefit

Protective hose TEXS prevents uncontrolled oil leakage in case of leakage. Protective hose TEXS combines wear and heat protection. MSHA approval. Also available as free lengths. Please just put an "M" (Meterware) behind the Indunorm article number.

Practical tip

Cut ends are simply welded with the lighter. Caution: Crimping of the material with the ferrule is not permitted! The one-sided mounting is done with our aluminum mounting sleeve ABH. The loose VC-PowerTex end serves for the controlled discharge of the medium after oil discharge from the hose-line.
