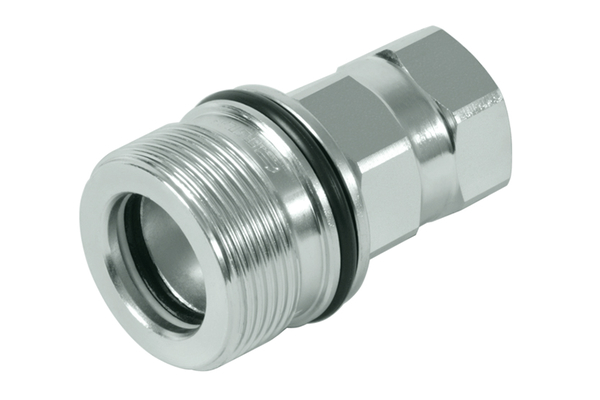

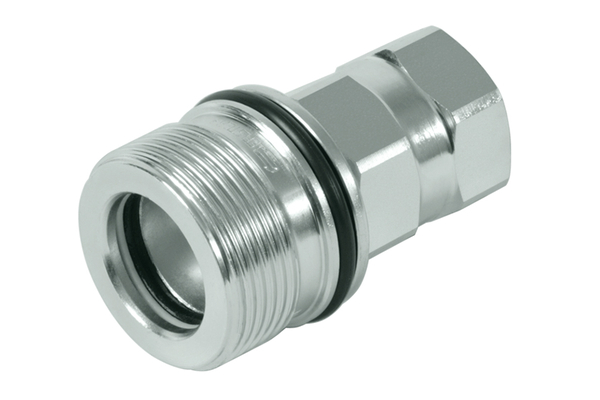

Faster CVC female coupling

For general applications (eg. agricultural technology and construction industry), compatibility according to ISO 14541

To accessories

Detail

Art. No.

SK6-VV2-30CEL22-20M

SK-CVC08BSP12M

SK-CVC0-22M12M

SK-CVC2-18CEL12-12M

SK-CVC30M25M

Size

Inch

1/2

working pressure [bar]

350

340

Thread + standard

Metric male-thread ISO 8434-1-L

BSP female DIN 3852

BSP female DIN 3852, with O-Ring Port

02/ METRIC - ISO 8434-1-L

metric female thread DIN 3852

Thread [GA]

M30x2

1/2

M22x1,5

M18x1,5 MALE 12L

M30x1,5

Pipe Ø R [mm]

22L

Outer Ø sleeve [mm]

48,0

35,0

54,0

Connection thread

48X3

Rd35x2

Rd54x3

Length sleeve [mm]

89,0

60,9

97,1

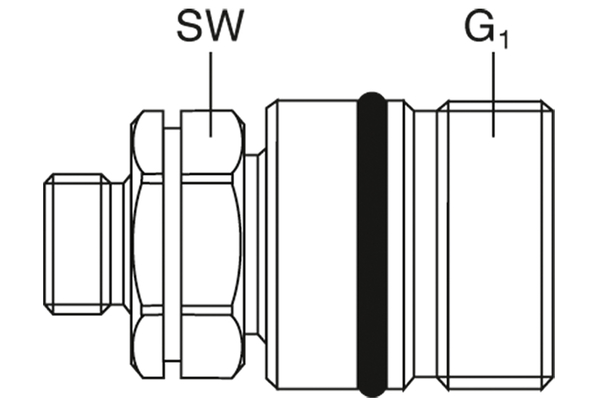

Wrench size connection side sleeve

SW1 [mm]

Can be coupled under pressure

Allowed under residual pressure

SW1 [mm]

l/min at ΔP=2 bar

205

160

Quantity

Product info

Specifications

Applications:	Construction Equipment, Vehicles & Road Machines, Agriculture
Female or male coupling:	Female
Material Casing:	Steel
Material sealing:	DN 06-10: NBR , DN 12-38: FKM (Viton(R))
Material support ring:	PTFE
Resistance against red rust [h]:	500
Standard:	ISO 14541
Surface:	MATE 500 (CrIII)
Temperature range [°C]:	FKM: -25 °C up to +200 °C , NBR: -25 °C up to + 125 °C
