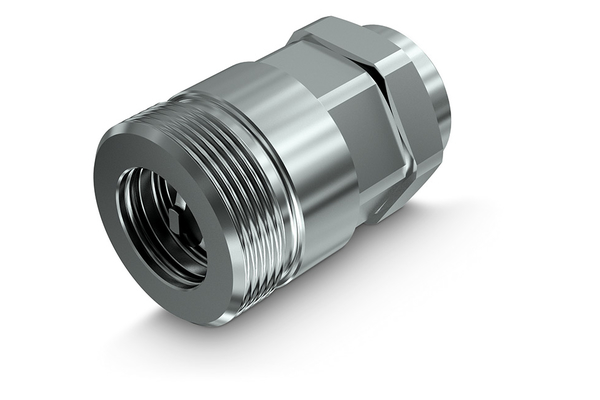

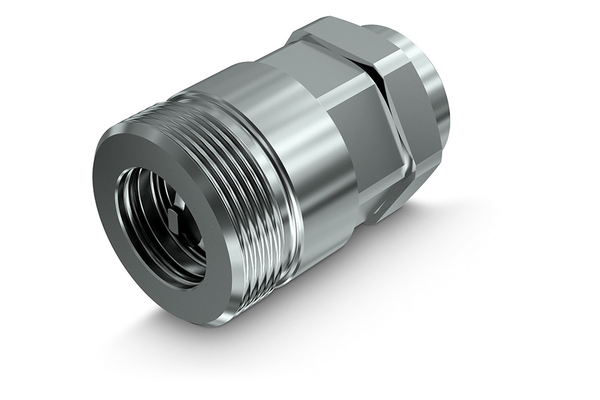

CVE female coupling

Similar image
Similar image

Screw-to-connect couplings for road machines applications

To accessories

Detail

Art. No.
CVE 34 GAS F
%
SALE
CVE 1 GAS F
%
SALE
DN
20
25
Size
12
working pressure [bar]
360
300
Thread + standard
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
Thread [GA]
3/4"
1"

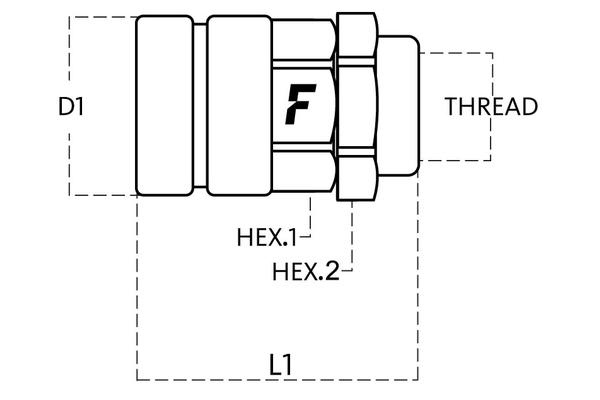

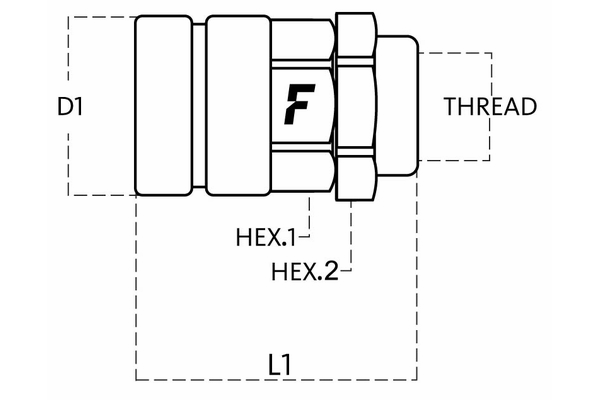

Outer Ø sleeve [mm]
51,0
54
Length sleeve [mm]
78,0
85,0
SW2 [mm]
50
50
SW1 [mm]
46
46
l/min at ΔP=2 bar
120
160
Quantity


Product info

  • Specifications
    Applications: Road machines
    Female or male coupling: Sleeve
    Material Casing: Steel
    Material sealing: NBR
    Resistance against red rust [h]: 500
    Surface: MATE 500 (CrIII)
    Temperature range [°C]: -25 °C to 125 °C

Benefit

Couplings designed for the transport industry. Composed by a screw-on sleeve (brass) and wings nuts with hexagon shape.
