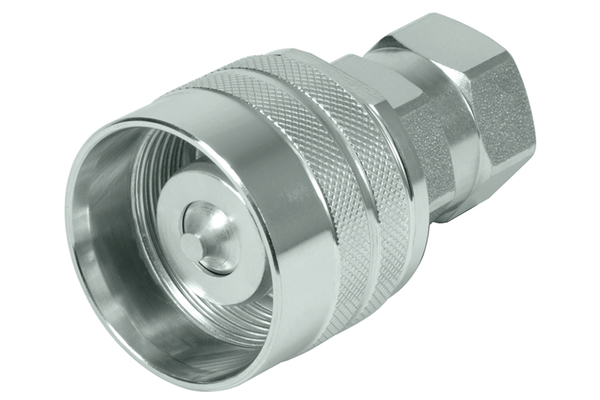

Faster CVV male coupling

Similar image
Similar image

For general applications (eg. agricultural technology and construction industry), compatibility according to ISO 14541

To accessories

Detail

Art. No.
SK1VV2-14CEL08-06S
%
SALE
SK2-VV2-16CEL10-10S
%
SALE
SK3-VSV0-12UNF12S
%
SALE
SK3-VSV2-16CEL10-12S
%
SALE
SK3-VSV2-26CEL18-12S
%
SALE
SK3-VSV3-22CES14-12S
%
SALE
SK3VSV5-18CELS12-12S
%
SALE
SK3VSV5-22CELS15-12S
%
SALE
SK3VSV6-22CESS14-12S
%
SALE
SK3VSV7-18CELS12-12S
%
SALE
SK3VSV7-22CELS15-12S
%
SALE
SK3-VV0-22M12S
%
SALE
SK3-VSV0-06BSP12S
%
SALE
SK3-VSV0-08BSP12S
%
SALE
SK6-VSVO-12BSP25S
%
SALE
SK6-VSV0-16BSP25S
%
SALE
SK1VV04BSP06S
%
SALE
SK2VV06BSP10S
%
SALE
SK3-VSV06BSP12S
%
SALE
SK3-VSV08BSP12S
%
SALE
SK6-VSV12BSP25S
%
SALE
SK6-VSV16BSP25S
%
SALE
SK3-VSV2-18CEL12-12S
%
SALE
SK3-VSV2-22CEL15-12S
%
SALE
SK4-VSV0-17UNF-20S
%
SALE
SK6-VSV0-19UNF-25S
%
SALE
SK6-VSV11-20ORM-25S
%
SALE
SK6-VSV11-16ORM-25S
%
SALE
SK6VSV5-36CELS28-25S
%
SALE
SK6-VSV2-30CEL22-20S
%
SALE
SK6-VSV2-36CEL28-25S
%
SALE
SK3-VSV3-20CES12-12S
%
SALE
SK3-VSV3-24CES16-12S
%
SALE
SK6-VSV3-30CES20-25S
%
SALE
SK6-VSV3-36CES25-25S
%
SALE
SK6-VSV3-42CES30-25S
%
SALE
SK8-VSV3-42CES30-32S
%
SALE
SK8-VSV3-52CES38-32S
%
SALE
SK6VSV5-30CELS22-20S
%
SALE
SK3VSV6-24CESS16-12S
%
SALE
SK6VSV6-30CESS20-16S
%
SALE
SK6VSV6-36CESS25-20S
%
SALE
SK6VSV6-42CESS30-20S
%
SALE
SK8VSV6-42CESS30-25S
%
SALE
SK8VSV6-52CESS38-32S
%
SALE
SK4-VSV12BSP20S
%
SALE
SK8-VSV24BSP32S
%
SALE
Size
1
2
3
3
3
3
3
3
3
3
3
3
3
3
6
6
1
2
3
3
6
6
3
3
4
6
6
6
6
6
6
3
3
6
6
6
8
8
6
3
6
6
6
8
8
4
8
DN
06
10
12
12
12
12
12
12
12
12
12
12
12
12
25
25
06
10
12
12
25
25
12
12
20
25
25
25
25
25
25
12
12
25
25
25
40
40
25
12
25
25
25
40
40
20
40
Size
06
08
08
08
08
08
08
08
08
08
08
08
08
16
16
04
06
08
08
16
16
08
08
12
16
16
16
16
16
16
08
08
16
16
16
24
24
16
08
16
16
16
24
24
12
24
Inch
1/4
3/8
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1
1
1/4
3/8
1/2
1/2
1
1
1/2
1/2
3/4
1
1
1
1
1
1
1/2
1/2
1
1
1
1.1/2
1.1/2
1
1/2
1
1
1
1.1/2
1.1/2
3/4
1.1./2
working pressure [bar]
500
400
400
400
400
400
400
400
400
400
400
400
400
400
350
350
500
400
400
400
350
350
400
400
350
350
350
350
350
350
350
400
400
350
350
350
350
350
350
400
350
350
350
350
350
350
350
Thread + standard
Metric male-thread ISO 8434-1-L
Metric male-thread ISO 8434-1-L
SAE (UNF) female-thread ORB ISO 11926-1
Metric male-thread ISO 8434-1-L
Metric male-thread ISO 8434-1-L
Metric male-thread ISO 8434-1-S
Metric bulkhead-thread ISO 8434-1-L
Metrisches Schottgewinde ISO 8434-1-L
Metric bulkhead-thread ISO 8434-1-S
Metric bulkhead-thread short ISO 8434-1-L
Metric bulkhead-thread short ISO 8434-1-L
Metric female-thread ORB ISO 6149-1
BSP female-thread ORB BS 5380
BSP female-thread ORB BS 5380
BSP female-thread ORB BS 5380
BSP female-thread ORB BS 5380
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSp female-thread ISO 1179-1
Metric male-thread ISO 8434-1-L
Metric male-thread ISO 8434-1-L
SAE (UNF) female-thread ORB ISO 11926-1
SAE (UNF) female-thread ORB ISO 11926-1
ORFS male-thread ISO 8434-3
ORFS male-thread ISO 8434-3
Metric male-thread ISO 8434-1-L
Metric male-thread ISO 8434-1-L
Metric male-thread ISO 8434-1-L
Metric male-thread ISO 8434-1-S
Metric male-thread ISO 8434-1-S
Metric male-thread ISO 8434-1-S
Metrisches Außengewinde ISO 8434-1-S
Metric male-thread ISO 8434-1-S
Metric male-thread ISO 8434-1-S
Metric male-thread ISO 8434-1-S
Metric bulkhead-thread ISO 8434-1-L
Metric male-thread ISO 8434-1-S
Metric male-thread ISO 8434-1-S
Metric bulkhead-thread ISO 8434-1-S
Metric bulkhead-thread ISO 8434-1-S
Metric bulkhead-thread ISO 8434-1-S
Metric bulkhead-thread ISO 8434-1-S
BSP female-thread ISO 1179-1
BSP Innengewinde ISO 1179-1
Thread [GA]
M14x1,5
M16x1,5
3/4"
M16x1,5
M26x1,5
M22x1,5
M18x1,5
M22x1,5
M22x1,5
M18x1,5
M22x1,5
M22x1,5
3/8
1/2
3/4
1
1/4
3/8
3/8
1/2
3/4
1
M18x1,5
M22x1,5
1.1/16"
1.3/16"
1.11/16"
1.7/16"
M36x2
M30x2
M36x2
M20x1,5
M24x1,5
M30x2
M36x2
M42x2
M42x2
M52x2
M30x2
M24x1,5
M30x2
M36x2
M42x2
M42x2
M52x2
3/4
1 1/2
Pipe Ø R [mm]
8L
10L
10L
18L
14S
12L
15L
14S
12L
15L
12L
15L
28L
22L
28L
12S
16S
20S
25S
30S
30S
38S
22L
16S
20S
30S
30S
38S
Outer Ø sleeve [mm]
42,0
42,0
56,0
56,0
30,0
34,0
42,0
42,0
56,0
56,0
48,0
80,0
Outer Ø plug [mm]
30,0
34,0
42,0
42,0
42,0
42,0
42,0
42,0
42,0
42,0
42,0
42,0
42,0
42,0
48,0
56,0
56,0
56,0
56,0
56,0
56,0
42,0
42,0
56,0
56,0
56,0
80,0
80,0
56,0
42,0
56,0
56,0
56,0
80,0
80,0
Connection thread
24x2
28x2
36x2
36x2
36x2
36x2
36x2
36x2
36x2
36x2
36x2
Rd36x2
36x2
36x2
48x3
48x3
24x2
28x2
36x2
36x2
48x3
48x3
36x2
36x2
42x2
48x3
48x3
48x3
48x3
48x3
48x3
36x2
36x2
48x3
48x3
48x3
70x3
70x3
Rd48x3
36x2
48x3
48x3
48x3
70x3
70x3
42x2
70x3
Length plug [mm]
58,0
66,0
70,0
67,0
67,0
69,0
90,0
90,0
90,0
81,0
81,0
70,0
66,0
70,0
90,0
90,0
63,0
70,0
66,0
70,0
90,0
95,0
66,0
67,0
86,0
93,0
97,0
97,0
107,0
89,0
88,0
67,0
69,0
93,0
93,0
110,0
125,0
127,0
109,4
90,0
115,0
113,0
110,0
145,0
147,0
86,0
131,0
SW1 [mm]
27
27
27
42
19
24
27
27
38
42
27
27
38
38
27
27
38
38
38
55
55
27
38
42
50
55
55
38
65
Can be coupled under pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
Allowed under residual pressure
SW1 [mm]
19
24
27
27
27
27
27
27
27
27
27
27
27
27
38
42
19
24
27
27
38
42
27
27
38
42
50
50
42
38
38
27
27
38
38
38
55
55
41
27
38
42
50
55
55
38
65
l/min at ΔP=2 bar
13
25
65
65
65
65
65
65
65
65
65
65
65
65
205
205
13
25
65
65
205
205
65
65
100
205
205
205
205
205
205
65
65
205
205
205
450
450
205
65
205
205
205
450
450
100
450
Quantity


Product info

  • Specifications
    Applications: Construction Equipment, Vehicles & Road Machines, Agriculture
    Female or male coupling: Male
    Material Casing: Steel
    Material sealing: DN 06-10: NBR , DN 12-38: FKM (Viton(R))
    Material support ring: PTFE
    Resistance against red rust [h]: 500
    Standard: ISO 14541
    Surface: MATE 500 (CrIII)
    Temperature range [°C]: FKM: -25 °C up to +200 °C , NBR: -25 °C up to + 125 °C

Benefit

guaranteed OEM quality and interchangeable according to ISO14541

Practical tip

You might connect against residual pressure (one way, either male or female part)
