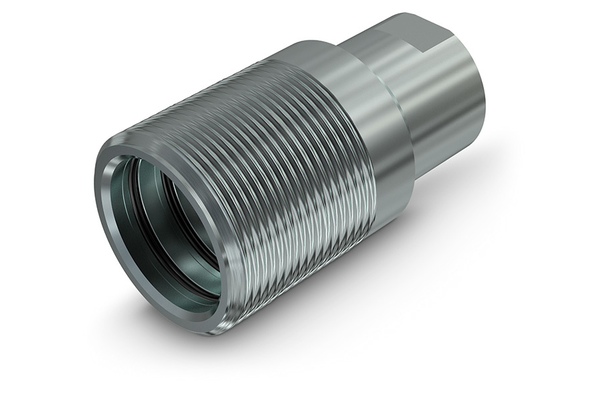

OGV male coupling

Similar image
Similar image

Screw to connect couplings for oil & gas application, market interchange

To accessories

Detail

Art. No.
OGV12 34NPS M
%
SALE
OGV16 1NPS M
%
SALE
OGV20 114NPT M
%
SALE
OGV24 112NPT M
%
SALE
OGV32 2NPT M
%
SALE
DN
20
25
32
38
50
Size
12
16
20
24
32
working pressure [bar]
350
350
350
350
350
Thread + standard
NPT female-thread ANSI B1.20.3
NPT-internal thread, DIN ANSI B1.20.3
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
Thread [GA]
3/4"
1"
1.1/4"
1.1/2"
2"
Outer Ø plug [mm]
44,25
57,12
66,65
82,52
101,57
Length plug [mm]
83,1
106
136,5
151,7
179,1
SW1 [mm]
32
41
50
55
75
l/min at ΔP=2 bar
120
230
320
330
570
Quantity


Product info

  • Specifications
    Applications: Oil & Gas, Industrial, construction equipment
    Female or male coupling: Plug
    Material Casing: Steel
    Material sealing: NBR & PUR
    Resistance against red rust [h]: 500
    Surface: Mate 500 (Cr III)
    Temperature range [°C]: -25 °C to 100 °C

Benefit

Standard screw-to-connect coupling suitable for Oil & Gas applications. Robust sleeve design, poppet valve and ACME connection thread.
