Product info
-
Specifications

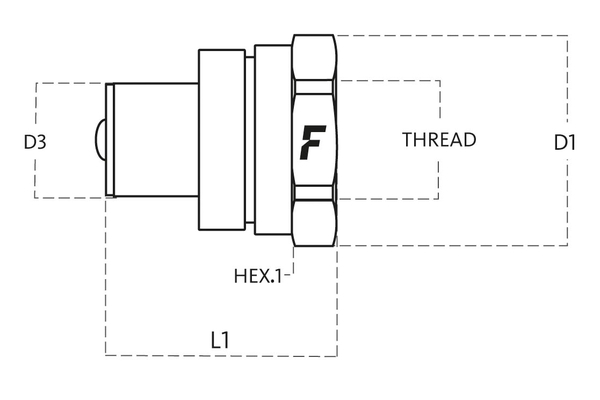

DN: 10 Size: 06 working pressure [bar]: 720 Thread + standard: NPT female-thread ANSI B1.20.3 Thread [GA]: 3/8" Outer Ø plug [mm]: 19,0 Length plug [mm]: 39,0 SW1 [mm]: 32 l/min at ΔP=2 bar: 14 Applications: Indtsurial, High Pressure Equipment Female or male coupling: Plug Material Casing: Steel Material sealing: NBR Resistance against red rust [h]: 500 Standard: ISO 14540 Surface: Mate 500 (Cr III) Temperature range [°C]: -25 °C to 125 °C
