Product info
-
Specifications

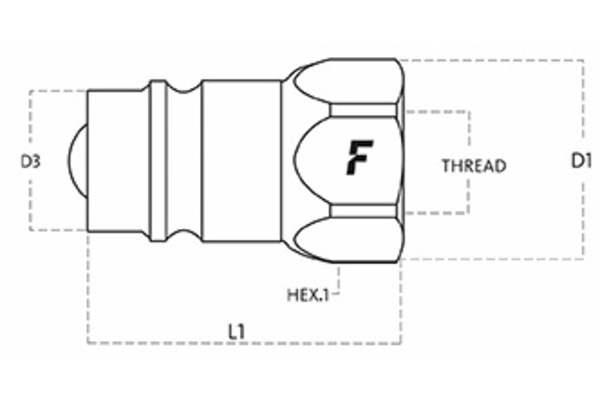

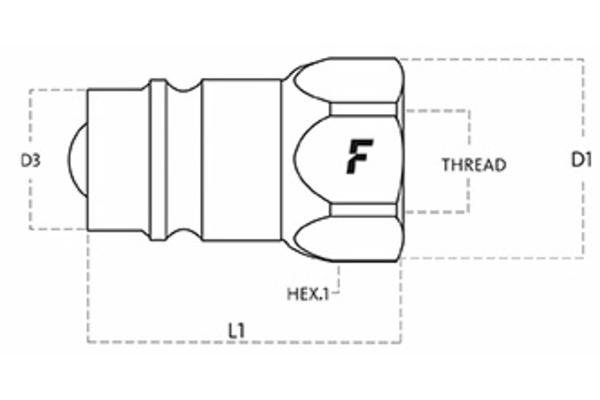

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 250 Thread + standard: NPT female-thread ANSI B1.20.3 Thread [GA]: 1/2 Outer Ø plug [mm]: 20,5 Length plug [mm]: 47,0 SW [mm]: 27 SW1 [mm]: 27 l/min at ΔP=2 bar: 60
