Product info
-
Specifications

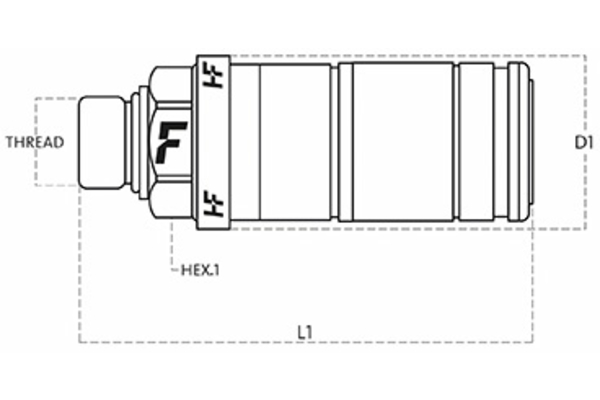

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 250 Thread + standard: Metric male-thread banjo bolt DIN 7643 Thread [GA]: M22x1,5 Outer Ø sleeve [mm]: 42,0 Length sleeve [mm]: 134,7 Can be coupled under pressure: male half up to 250 bar SW1 [mm]: 32 l/min at ΔP=2 bar: 70 Applications: Agriculture Female or male coupling: Sleeve Material Casing: Steel Material sealing: PUR Resistance against red rust [h]: 500 Standard: ISO 7241-A Surface: Mate 500 (CrIII) Temperature range [°C]: -25 °C to 100 °C
