3CFHF087/22FAG

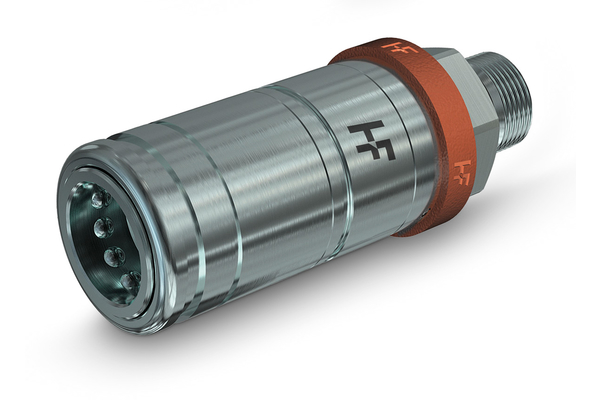

Faster 3CFHF-Sleeve

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  Working pressure [bar]:	250

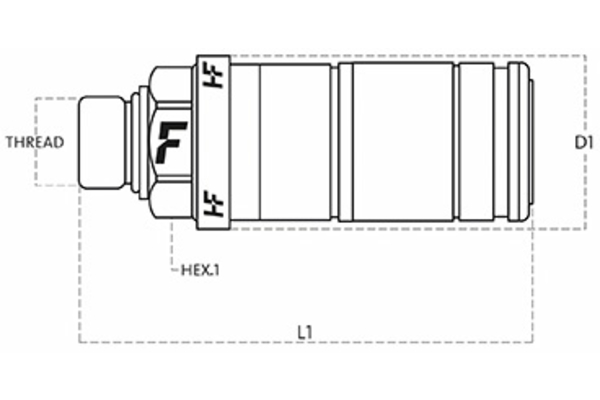

  Thread + standard:	Metric bulkhead-thread short ISO 8434-1-L
  Thread [GA]:	M22x1,5
  Pipe Ø R [mm]:	15L
  Outer Ø sleeve [mm]:	40,0 (AGCO-Version)
  Length sleeve [mm]:	137,6
  SW2 [mm]:	27
  Can be coupled under pressure:	Male half up to 250 bar
  SW1 [mm]:	38
  l/min at ΔP=2 bar:	70
  Applications:	Agriculture
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	PUR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-A
  Surface:	Mate 500 (CrIII)
  Temperature range [°C]:	-25 °C to 100 °C
