Product info
-
Specifications

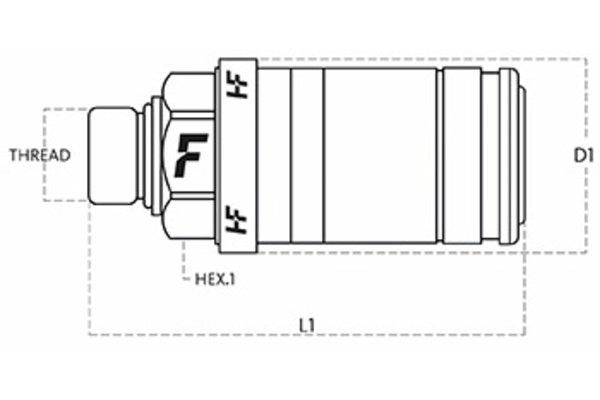

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 250 Thread + standard: Metric screw-in thread with o-ring ISO 6149-2 Thread [GA]: M22x1,5 Outer Ø sleeve [mm]: 42,0 Length sleeve [mm]: 109,7 SW [mm]: 32 SW1 [mm]: 32 l/min at ΔP=2 bar: 70
