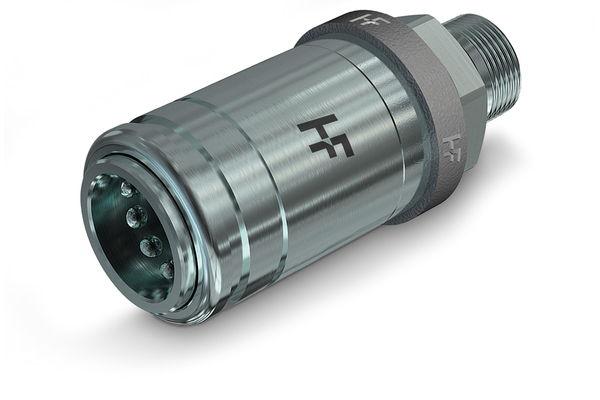

4SKHF female coupling

Compact push-pull female couplings for agriculture with higher flow rate, up to 250 l/min

To accessories

Detail

Art. No.

4SKHF0821/2215 F

4SKHF081/2215 F

4SKHF087/2215 F

Size

Inch

1/2

working pressure [bar]

250

Thread + standard

Metric screw-in thread with elastic seal ISO 9974-2

Metric screw-in thread with o-ring ISO 6149-2

Metric bulkhead short ISO 8434-1-l

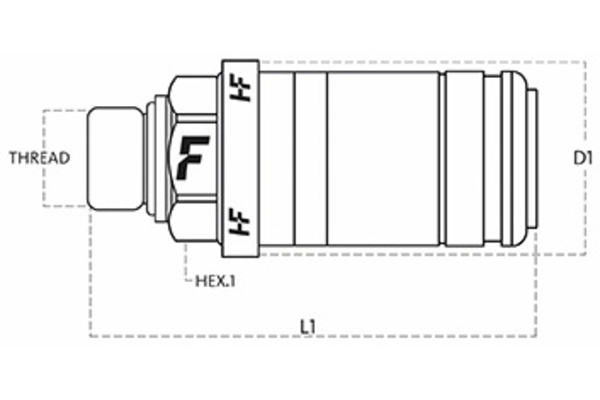

Thread [GA]

M22x1,5

Pipe Ø R [mm]

15L

Outer Ø sleeve [mm]

42,0

Length sleeve [mm]

94,2

94,7

107,4

SW1 [mm]

l/min at ΔP=2 bar

Quantity

Product info

Specifications

Applications:	Agriculture
Female or male coupling:	Sleeve
Material Casing:	Steel
Material sealing:	PUR
Resistance against red rust [h]:	500
Standard:	ISO 7241-A
Surface:	Mate 500 (CrIII)
Temperature range [°C]:	-25 °C to 100 °C

Benefit

Compact push-pull couplings for application with higher flow rate and limited space, connectable under residual pressure in both male and female side. Can be screwed directly into valve ports or rigid pipes. Breakaway function. ISO 7241 part A interchange. Flow rate up to 250 l/min. Reduced dimensions: 15 mm shorter than standard version.
