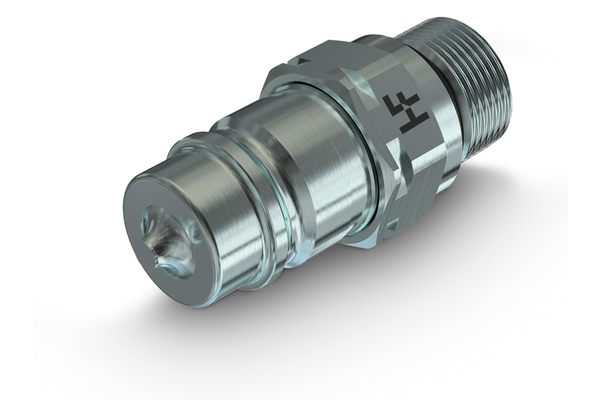

4SKHF male coupling

High-flow male coupling for agriculture with higher flow rate, up to 250 l/min

To accessories

Detail

Art. No.

NVHF08 GAS M

CNVHF08 38GAS M

CNVHF082/1815 M

CNVHF082/2215 M

CNVHF082/2615 M

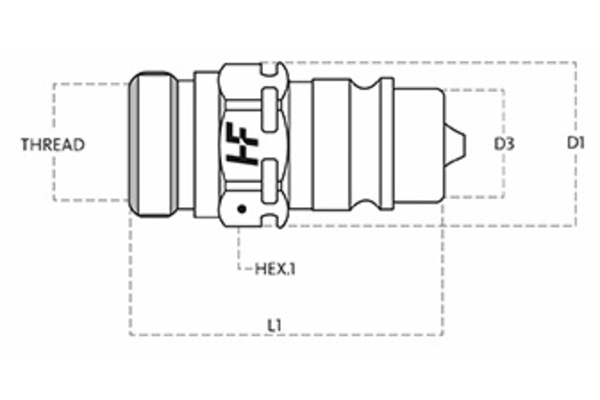

Size

Inch

1/2

working pressure [bar]

250

Thread + standard

BSP female-thread ISO 1179-1

Metric male-thread ISO 8434-1-L

Thread [GA]

1/2

3/8

M18x1,5

M22x1,5

M26x1,5

Pipe Ø R [mm]

12L

15L

18L

Outer Ø plug [mm]

20,5

Length plug [mm]

SW1 [mm]

l/min at ΔP=2 bar

Quantity

Product info

Specifications

Applications:	Agriculture
Female or male coupling:	Plug
Material Casing:	Steel
Material sealing:	PUR
Resistance against red rust [h]:	500
Standard:	ISO 7241-A
Surface:	Mate 500 (CrIII)
Temperature range [°C]:	-25 °C to 100 °C

Benefit

Push-pull coupling for high flow rate applications, connectable with male under residual pressure. Breakaway function. Can be screwed directly into valve ports or rigid pipes. ISO 7241 part A interchange. Flow rate up to 250 l/min.
