Product info
-
Specifications

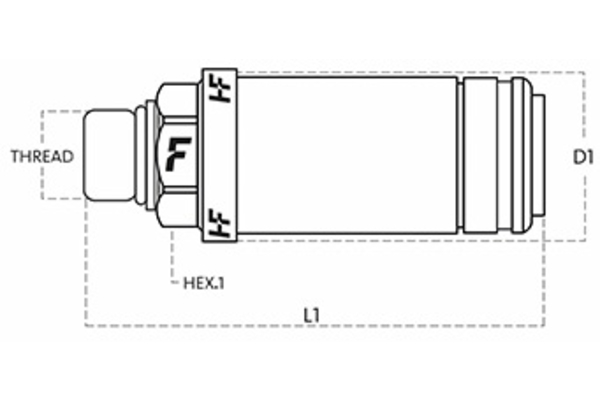

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 250 Thread + standard: BSP bulkhead-thread ISO 8434-6 Thread [GA]: 1/2" Outer Ø sleeve [mm]: 42,0 Length sleeve [mm]: 130,2 SW [mm]: 42 SW2 [mm]: 27 Can be coupled under pressure: Female or male half up to 250 bar SW1 [mm]: 32 l/min at ΔP=2 bar: 70 Applications: Agriculture Female or male coupling: Sleeve Material Casing: Steel Material sealing: PUR Resistance against red rust [h]: 500 Standard: ISO 7241-A Surface: Mate 500 (CrIII) Temperature range [°C]: -25 °C to 100 °C
