Product info
-
Specifications

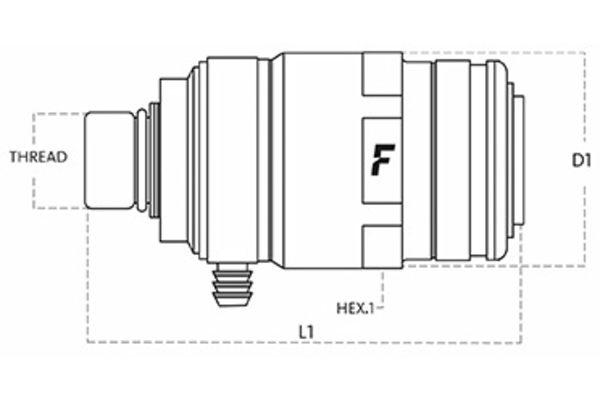

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 250 Thread + standard: Metric male-thread with o-ring ISO 6149-2 Thread [GA]: M22x1,5 Outer Ø sleeve [mm]: 50,0 Length sleeve [mm]: 101,7 SW1 [mm]: 46 l/min at ΔP=2 bar: 50 Applications: Agriculture Female or male coupling: Sleeve Material Casing: Steel Material sealing: NBR & PUR Note: Has single oil collector port Resistance against red rust [h]: 500 Standard: ISO 7241-A Surface: Mate 500 (CrIII) Temperature range [°C]: -25 °C to 125 °C
