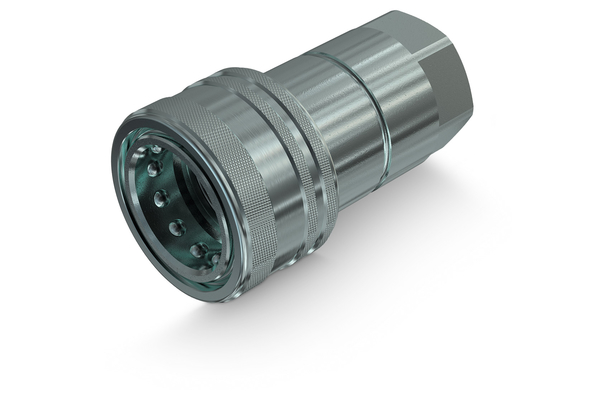

ANV female coupling

Similar image
Similar image

Standard couplings for agriculture, ISO 7241-A interchange.

To accessories

Detail

Art. No.
ANV 14 GAS F
%
SALE
ANV 14 JPT F
%
SALE
ANV 14 NPT F
%
SALE
ANV 38 GAS F
%
SALE
ANV 38 JPT F
%
SALE
ANV 38 NPT F
%
SALE
ANV 1815 F
%
SALE
ANV 34 GAS F
%
SALE
ANV 34 JPT F
%
SALE
ANV 34 NPT F
%
SALE
ANV 34-34SAE F
%
SALE
ANV 1 GAS F
%
SALE
ANV 1 NPT F
%
SALE
ANV 1 JPT F
%
SALE
ANV 1-1 SAE F
%
SALE
ANV114 GAS F
%
SALE
ANV114 NPT F
%
SALE
ANV112 GAS F
%
SALE
ANV 2 GAS F
%
SALE
ANV 2 NPT F
%
SALE
Size
1
1
1
2
2
2
2
4
4
4
4
6
6
6
6
8
8
DN
06
12
06
10
10
10
10
20
20
20
20
25
25
25
25
31
31
38
50
50
Size
04
04
04
06
06
06
06
12
12
12
12
16
16
16
16
20
20
24
32
32
Inch
1/4
1/4
1/4
3/8
3/8
3/8
3/8
3/4
3/4
3/4
3/4
1
1
1
1
1.1/4
1.1/4
1.1/2
2
2
working pressure [bar]
500
500
500
300
300
300
300
300
300
300
300
250
250
250
250
250
250
200
150
150
Thread + standard
BSP female-thread ISO 1179-1
RC (JPT) female-thread tapered UNI EN 10226-2
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
RC (JPT) female-thread tapered UNI EN 10226-2
NPT female-thread ANSI B1.20.3
Metric female-thread ISO 9974-1
BSP female-thread ISO 1179-1
RC (JPT ) female-thread tapered UNI EN 10226-2
NPT female-thread ANSI B1.20.3
SAE (UNF) female-thread ORB ISO 11926-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
RC (JPT) female-thread tapered UNI EN 10226-2
SAE (UNF) female-thread ORB ISO 11926-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
Thread [GA]
1/4
1/4
1/4
3/8
3/8
3/8
M18x1,5
3/4
3/4
3/4
1.1/16
1
1
1
1.5/16
1.1/4
1.1/4
1.1/2
2
2

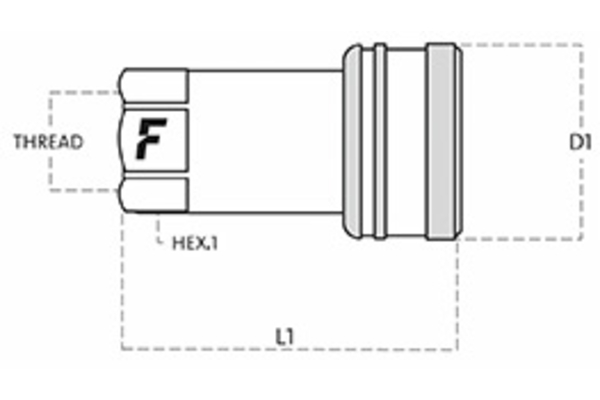

Outer Ø sleeve [mm]
25,0
25,0
25,0
32,0
32,0
32,0
32,0
48,0
48,0
48,0
48,0
56,0
56,0
56
56,0
70
70
84,0
100,0
100,0
Length sleeve [mm]
38,6
47,2
48,0
57,0
57,2
57,0
57,0
82,5
82,5
82,5
82,5
100,0
100,0
100,0
100,0
116
116
132,5
161,0
161,0
SW1 [mm]
19
19
19
22
22
22
22
34
34
34
34
41
41
41
41
50
50
60
75
75
l/min at ΔP=2 bar
8
8
8
30
30
30
30
180
180
180
180
270
270
270
270
330
330
450
900
900
Quantity


Product info

  • Specifications
    Applications: Agriculture
    Female or male coupling: Sleeve
    Material Casing: Steel
    Material sealing: NBR
    Resistance against red rust [h]: 500
    Standard: ISO 7241-1A
    Surface: Mate 500 (CrIII)
    Temperature range [°C]: - 25 °C to + 125 °C

Benefit

Standard couplings for agriculture applications. Complete range of sizes from 1/4" to 2" (with BSP, NPT or SAE female threads available). ISO 7241 part A interchange.
