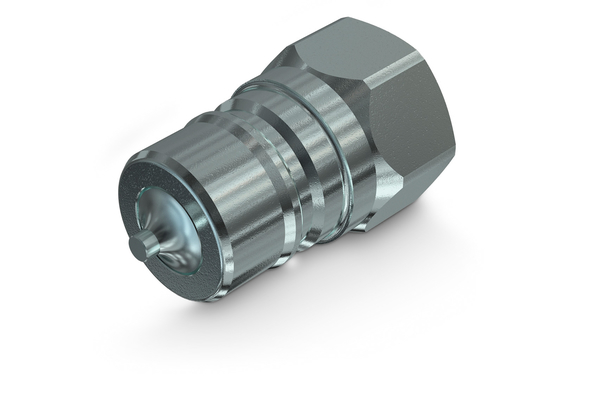

ANV male coupling

Similar image
Similar image

Standard couplings for agriculture, ISO 7241-A interchange.

To accessories

Detail

Art. No.
ANV 14 GAS M
%
SALE
ANV 14 JPT M
%
SALE
ANV 14 NPT M
%
SALE
ANV 14-38SAE M
%
SALE
ANV 38 JPT M
%
SALE
ANV 38 GAS M
%
SALE
ANV 1815 M
%
SALE
ANV 38 NPT M
%
SALE
ANV 34 GAS M
%
SALE
ANV 34 JPT M
%
SALE
ANV 34 NPT M
%
SALE
ANV 34-34SAE M
%
SALE
ANV 1 GAS M
%
SALE
ANV 1 JPT M
%
SALE
ANV 1 NPT M
%
SALE
ANV114 GAS M
%
SALE
ANV114 NPT M
%
SALE
ANV112 GAS M
%
SALE
ANV 2 GAS M
%
SALE
ANV 2 NPT M
%
SALE
Size
1
1
1
1
2
2
2
2
4
4
4
4
6
6
6
8
8
DN
06
06
06
06
10
10
10
10
20
20
20
20
25
25
25
32
32
38
50
50
Size
04
04
04
04
06
06
06
06
12
12
12
12
16
16
16
20
20
24
32
32
Inch
1/4
1/4
1/4
1/4
3/8
3/8
3/8
3/8
3/4
3/4
3/4
3/4
1
1
1
1.1/4
1.1/4
1.1/2
2
2
working pressure [bar]
500
500
500
500
300
300
300
300
300
300
300
300
250
250
250
250
250
200
150
150
Thread + standard
BSP female-thread ISO 1179-1
RC (JPT) female-thread UNI EN 10226-2
NPT female-thread ANSI1.20.3
SAE (UNF) female-thread ORB ISO 11926-1
RC (JPT) female-thread UNI EN 10226-2
BSP female-thread ISO 1179-1
Metric internal thread ISO 9974-1
NPT internal thread ANSI B1.20.3
BSP internal thread ISO 1179-1
RC (JPT) internal thread UNI EN 10226-2
NPT internal thread ANSI B1.20.3
SAE (UNF) internal thread with O-Ring port ISO 11926-1
BSP internal thread ISO 1179-1
RC (JPT) internal thread UNI EN 10226-2
NPT internal thread ANSI B1.20.3
BSP internal thread ISO 1179-1
NPT internal thread ANSI B1.20.3
BSP internal thread ISO 1179-1
BSP internal thread ISO 1179-1
NPT internal thread ANSI B1.20.3
Thread [GA]
1/4
1/4
1/4
9/16
3/8
3/8
M18x1,5
3/8
3/4
3/4
3/4
1.1/16
1
1
1
1.1/4
1.1/4
1.1/2
2
2

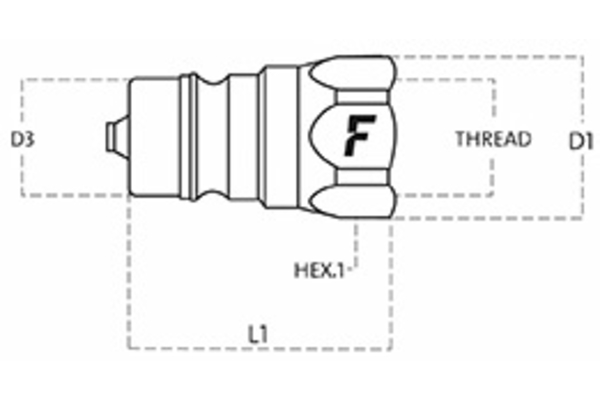

Outer Ø plug [mm]
11,8
11,8
11,8
11,8
17,2
17,2
17,2
17,2
29,0
29,0
29,0
29,0
34,3
34,3
34,3
44,9
44,9
55,0
65,0
65,0
Length plug [mm]
38,6
38,6
38,6
40,2
39,0
39,0
39,0
39,0
55,0
55,0
55,0
55,0
66,0
66,0
66,0
73,0
73,0
83,0
100,0
100,0
SW1 [mm]
19
19
19
19
22
22
22
22
34
34
34
34
41
41
41
50
50
60
75
75
l/min at ΔP=2 bar
8
8
8
8
30
30
30
30
180
180
180
180
270
270
270
330
330
450
900
900
Quantity


Product info

  • Specifications
    Applications: Agriculture
    Female or male coupling: Connector
    Material Casing: Steel
    Material sealing: NBR
    Resistance against red rust [h]: 500
    Standard: ISO 7241-1A
    Surface: Mate 500 (Chrom III)
    Temperature range [°C]: - 25 °C to + 125 °C

Benefit

Reference couplings for agricultural applications, but also used extensively in construction and industry. Sealing system with conical valve. Connection under pressure not permitted. Interchangeability according to standard ISO 7241-A.
