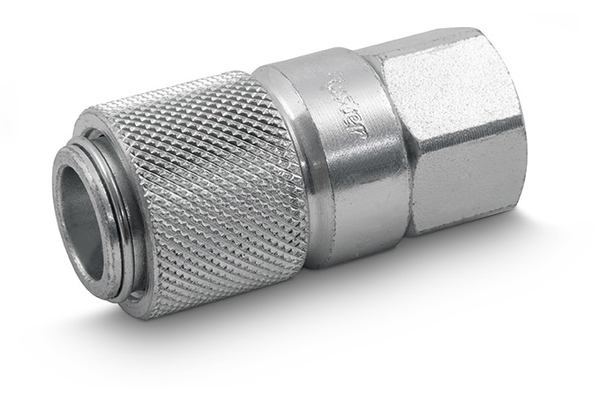

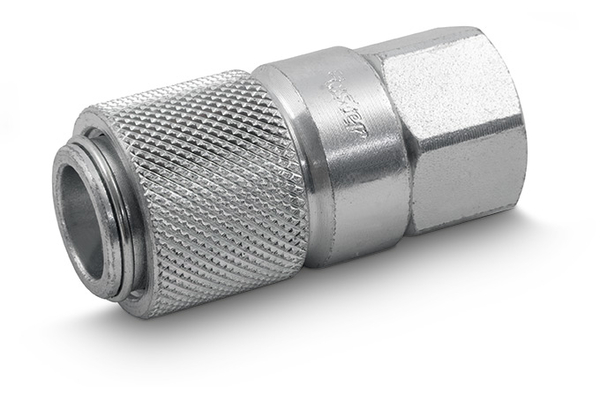

DF femal coupling

Similar image
Similar image

Flat Face reference coupling for diagnostic and maintaining applications, compatibility according to ISO 15171-1

To accessories

Detail

Art. No.
ST-DF0-02NPT03M
%
SALE
ST-DF0-04NPT03M
%
SALE
ST-DF0-14M03M
%
SALE
Size
1
1
1
DN
03
03
03
Size
04
04
04
Inch
1/4
1/4
1/4
working pressure [bar]
470
470
470
Thread + standard
NPT female thread DIN 3852
NPT female thread DIN 3852
BSP female DIN 3852, with O-Ring Port
Thread [GA]
1/8
1/4
M14x1,5

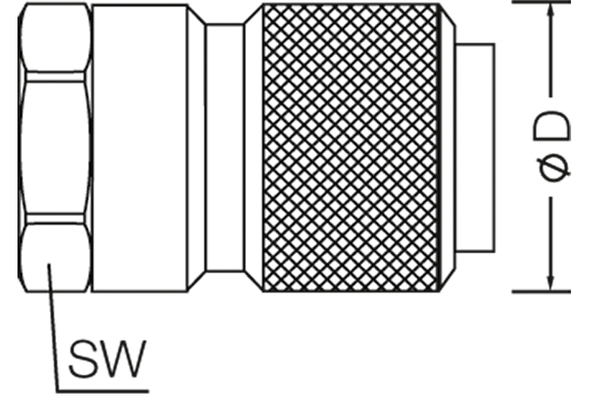

Outer Ø sleeve [mm]
24,0
24,0
24,0
Length sleeve [mm]
42,0
50,0
Wrench size connection side sleeve
21
21
21
l/min at ΔP=2 bar
2
2
2
Quantity


Product info

  • Specifications
    Applications: industry, agricultural technology , power units, construction machines
    Female or male coupling: sleeve
    Material: C-steel, nitrified
    Material Casing: Steel
    Material sealing: NBR, PTFE
    Surface: galvanised and Cr III passivated
    Temperature range [°C]: -25 °C to +125 °C

Benefit

Small and compact design.
