Product info
-
Specifications

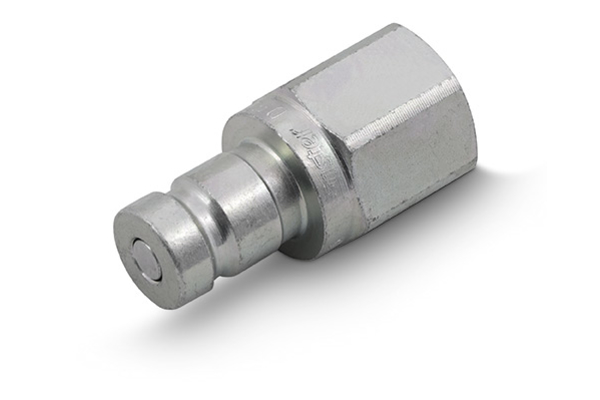

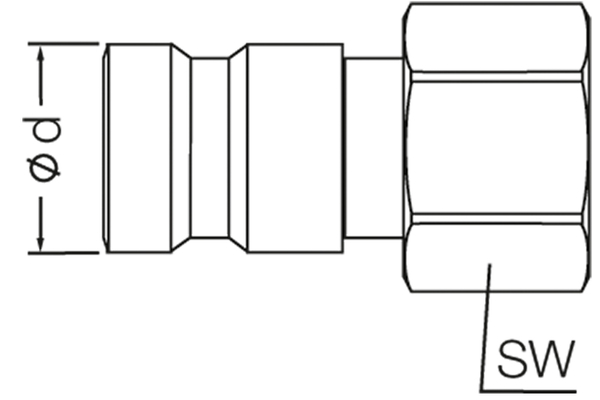

Size: 1 DN: 03 Size: 04 Inch: 1/4 working pressure [bar]: 470 Thread + standard: NPT female thread DIN 3852 Thread [GA]: 1/4 Outer Ø plug [mm]: 12.7 Length plug [mm]: 40,0 Wrench size connection side plug: 21 l/min at ΔP=2 bar: 2 L1 [mm]: 75 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: plug Material: C-steel, nitrified Material Casing: Steel Material sealing: NBR, PTFE Note: - Product title long: Series ST-DF male coupling. Product title short: male coupling Surface: galvanised and Cr III passivated Temperature range [°C]: -25 °C to +125 °C
