Product info
-
Specifications

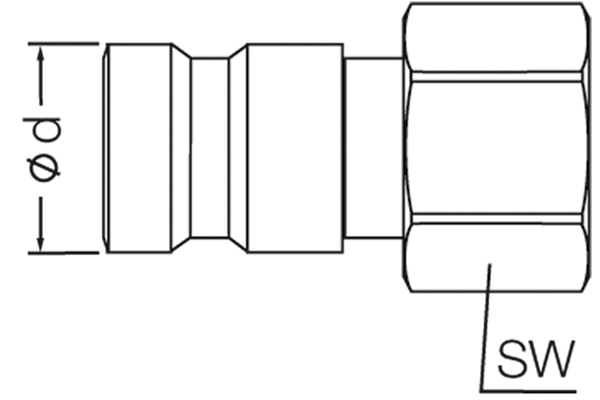

Size: 1 DN: 03 Size: 04 Inch: 1/4 working pressure [bar]: 470 Thread + standard: NPT male thread DIN 3863 Thread [GA]: 1/4 Outer Ø plug [mm]: 12.7 Length plug [mm]: 41,0 Wrench size connection side plug: 21 L1 [mm]: 82 Female or male coupling: plug Material Casing: Steel Material sealing: NBR, PTFE Surface: galvanised and Cr III passivated Temperature range [°C]: -25 °C to +125 °C
