Product info
-
Specifications

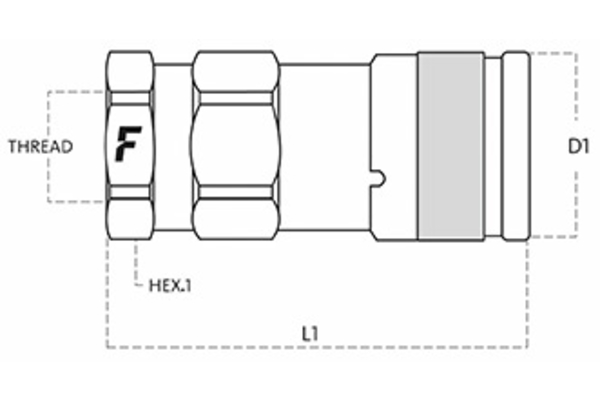

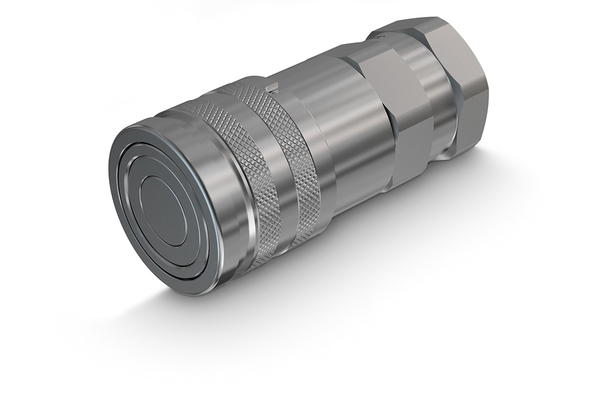

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 250 Thread + standard: BSP internal thread ISO 1179-1 Thread [GA]: 1/2 Outer Ø sleeve [mm]: 38 Length sleeve [mm]: 81,9 SW2 [mm]: 32 l/min at ΔP=2 bar: 100 Applications: Industry, oil & gas applications Female or male coupling: Socket Material Casing: Stainless steel Material sealing: FKM Standard: ISO 16028 Temperature range [°C]: -20 °C to 200 °C wrong type: false
