Product info
-
Specifications

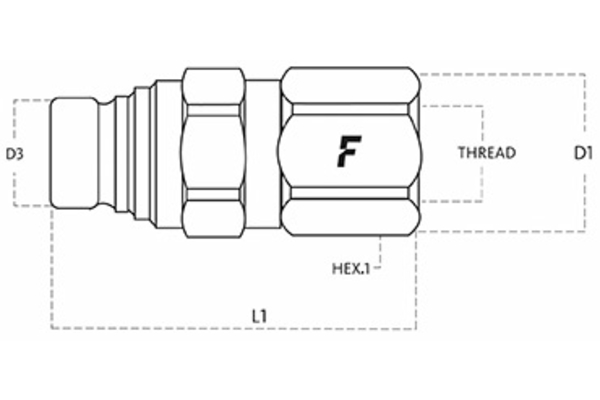

Size: 1 DN: 06 Size: 04 Inch: 1/4 working pressure [bar]: 250 Thread + standard: BSP internal thread ISO 1179-1 Thread [GA]: 1/4 Outer Ø plug [mm]: 16,1 Length plug [mm]: 62,8 SW1 [mm]: 24 l/min at ΔP=2 bar: 20 Applications: Industry, oil & gas applications Female or male coupling: Connector Material Casing: Stainless steel Material sealing: FKM Standard: ISO 16028 Temperature range [°C]: -20 °C to 200 °C wrong type: false
