Product info
-
Specifications

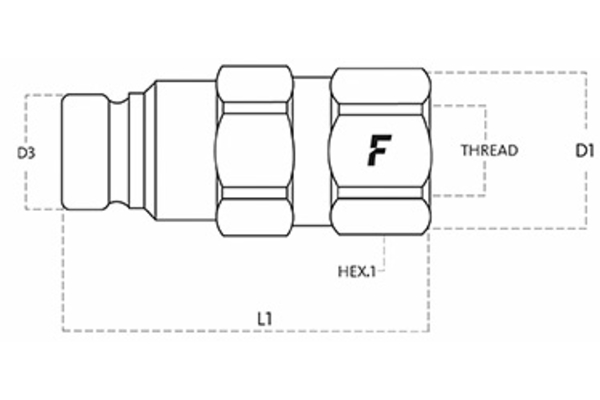

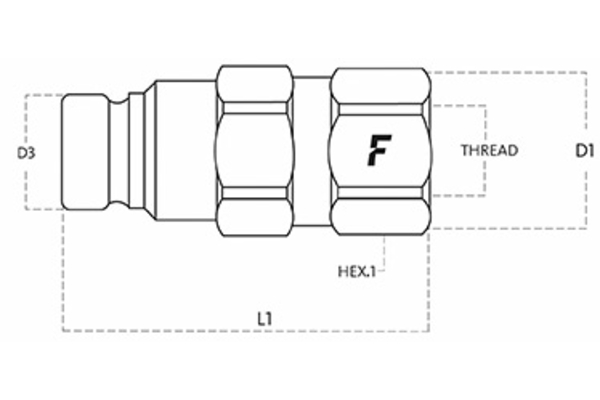

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 120 Thread + standard: NPT female-thread ANSI B1.20.3 Thread [GA]: 3/4 Outer Ø plug [mm]: 24,5 Length plug [mm]: 81,5 SW1 [mm]: 34 l/min at ΔP=2 bar: 100 Applications: Industrial Female or male coupling: Plug Material Casing: Brass Material sealing: FKM Standard: ISO 16028 Temperature range [°C]: -20 °C to 200 °C wrong type: false
