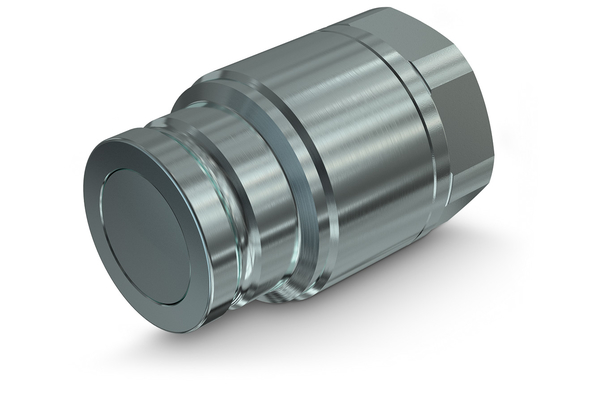

Flat-Face 2FSI-FFI male coupling

Sectors latching couplers. Size 1,1/2" - 2" -3"

To accessories

Detail

Art. No.

FFI112 GAS M

FFI 3 GAS M

Size

Inch

1.1/2

working pressure [bar]

250

120

Thread + standard

BSP female-thread ISO 1179-1

Thread [GA]

1.1/2

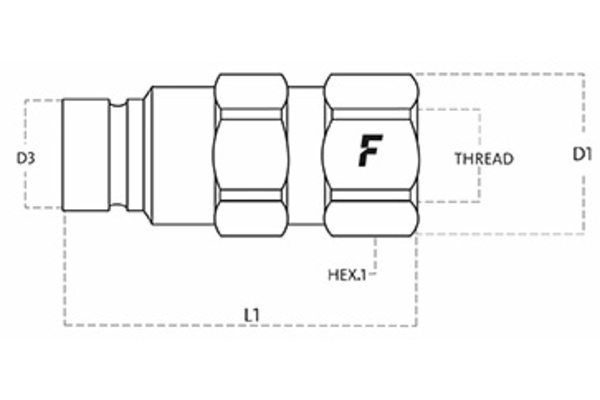

Outer Ø plug [mm]

125

Length plug [mm]

104,2

182,3

SW1 [mm]

115

l/min at ΔP=2 bar

500

1150

Quantity

Product info

Specifications

Applications:	Construction Equipment, Oil & Gas Applications
Female or male coupling:	Plug
Material Casing:	Steel
Material sealing:	NBR & PUR
Resistance against red rust [h]:	500
Surface:	Mate 500 (CrIII)
Temperature range [°C]:	-25 °C to 100 °C

Benefit

Flat face couplings equipped with sector latching system. High resistance to the Brinelling effect, provoked by high frequency impulse pressures. Available on 1", 1-1/2", 2" and 3" sizes. MARKET interchange.
