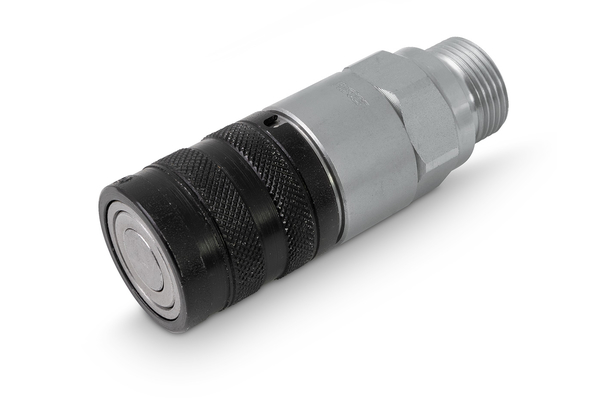

Flat-Face ST-3FF femal coupling (ISO 16028)

Detail

Size
2
3
6
2
DN
10
12
20
10
Size
06
08
12
06
Inch
3/8
1/2
3/4
3/8
working pressure [bar]
350
350
350
350
Thread + standard
BSP female-thread ISO 1179-1
BSP female-thread ISo 1179-1
BSP female-thread ISO 1179-1
Metric male-thread ISO 8434-1
Thread [GA]
3/8
1/2
3/4
M22x1,5
Pipe Ø R [mm]
15L

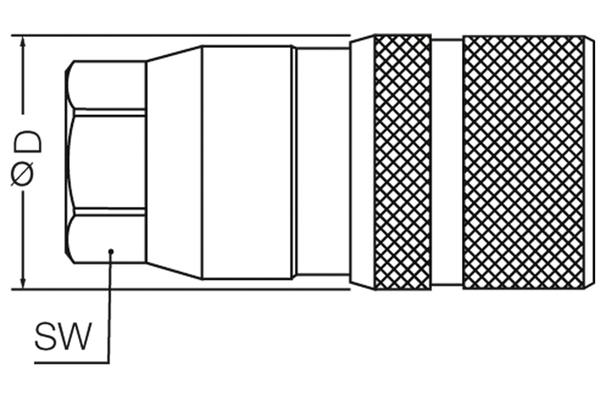

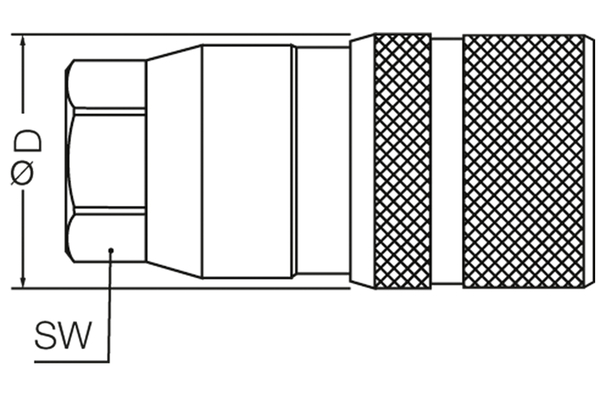

Outer Ø sleeve [mm]
30,0
38,0
48,0
30,0
Length sleeve [mm]
75,0
81,3
81,9
Wrench size connection side sleeve
27
34
27
l/min at ΔP=2 bar
50
65
50
Quantity


Product info

  • Specifications
    Applications: industry, agricultural technology , power units, construction machines
    Female or male coupling: sleeve
    Material: C-steel, nitrified
    Material Casing: Steel
    Material sealing: Standard NBR, 85 Shore. Backup ring PTFE
    Material support ring: PTFE
    Standard: ISO 16028
    Surface: galvanised and Cr III passivated
    Temperature range [°C]: -25 °C to +100 °C

Benefit

ST-FF has been tested with 1.000.000 impulses and exceeds the market standard in wear resistance and working pressure.

Accessories

dust protection

Practical tip

ST-3FF is interchangeable within the ISO16028. Please note that with the ST-3FF it is possible to connect against residual pressure (working pressure, one-way, male or female).
