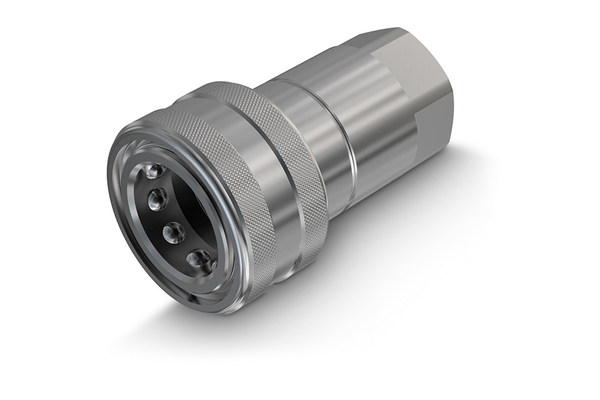

HNV female coupling (stainless steel)

Similar image
Similar image

Standard couplings for industrial applications, ISO 7241-1B interchange, stainless-steel version

To accessories

Detail

Art. No.
HNV 14 GAS F 2V
%
SALE
HNV 14 NPT F 2V
%
SALE
HNV 38 GAS F 2V
%
SALE
HNV 38 NPT F 2V
%
SALE
HNV 12 GAS F 2V
%
SALE
HNV 12 NPT F 2V
%
SALE
HNV 34 GAS F 2V
%
SALE
HNV 34 NPT F 2V
%
SALE
HNV 1 NPT F 2V
%
SALE
HNV 1 GAS F 2V
%
SALE
HNV112 NPT F 2V
%
SALE
HNV112-114N F2V
%
SALE
HNV 2 NPT F 2V
%
SALE
Size
1
1
2
2
3
3
4
4
6
6
8
8
DN
06
06
10
10
12
12
20
25
25
38
38
50
Size
04
04
06
06
08
08
12
12
16
16
24
24
32
Inch
1/4
1/4
3/8
3/8
1/2
1/2
3/4
3/4
1
1
1.1/2
1.1/2
2
working pressure [bar]
350
350
270
270
320
320
250
250
210
210
140
140
90
Thread + standard
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
NPT Innengewinde ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
NPT Innengewinde ANSI B1.20.3
NPT female-thread ANSI B1.20.3
Thread [GA]
1/4
1/4
3/8
3/8
1/2
1/2
3/4
3/4
1
1
1.1/2
1.1/4
2
Outer Ø sleeve [mm]
28,0
28,0
35,0
35,0
71,5
44,0
52,0
52,0
60,0
60,0
75,0
75,0
Outer Ø plug [mm]
105,0
Length sleeve [mm]
56,0
56,0
64,0
64,0
71,5
71,5
89,0
89,0
106,0
106,3
126,3
126,0
142,0
SW1 [mm]
19
19
24
24
30
27
36
36
41
41
65
65
89
l/min at ΔP=2 bar
14
14
27
27
60
60
110
110
150
150
750
750
1600
Quantity


Product info

  • Specifications
    Applications: Industrial, Oil & Gas, Air Conditioning Refrigeration
    Female or male coupling: Sleeve
    Material Casing: Stainless steel
    Material sealing: FKM
    Standard: ISO 7241-1B
    Temperature range [°C]: -20 °C to 200 °C
